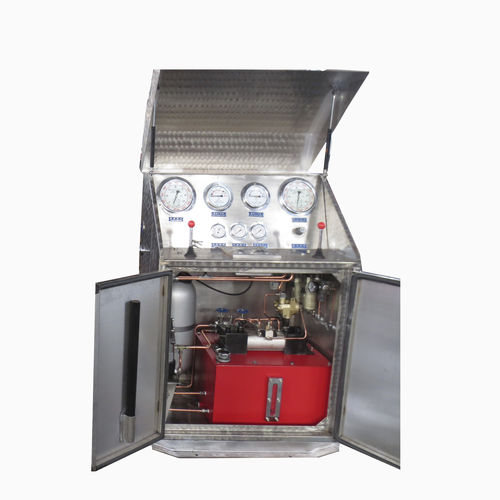

Control panel JY series

Control panel is the control device for hydraulic choke manifold. It can remote control the opening and closing of the hydraulic choke valve and show the pressure of standpipe and casing pressure, and the switching position of hydraulic choke valve. It can also show the strokes and frequency of the three mud pumps if equipped with pump stroke counter, which is an necessary equipment to control well kick,blowout and pressure balance. Model description： Technical parameters: (1)Air pressure：0.6MPa (2)Environment temperature：-20℃~+60℃ (3)Working pressure：3MPa (4)Gas circuit quick coupling size：M16×1.5 (5)Oil passage quick coupling size：M22×1.5 (6)Hydraulic oil specification:cold resistance hydraulic oil (7)L×W×H：960×600×1300 (8)NW：300kg
