Gas safety valve oilhydraulic
Add to favorites
Compare this product
Characteristics
- Fluid
- gas
- Other characteristics
- oil, hydraulic
- Controlled pressure
Max.: 20,000 psi
Min.: 2,000 psi
- DN
Max.: 180 mm
(7.087 in)Min.: 46 mm
(1.811 in)
Description

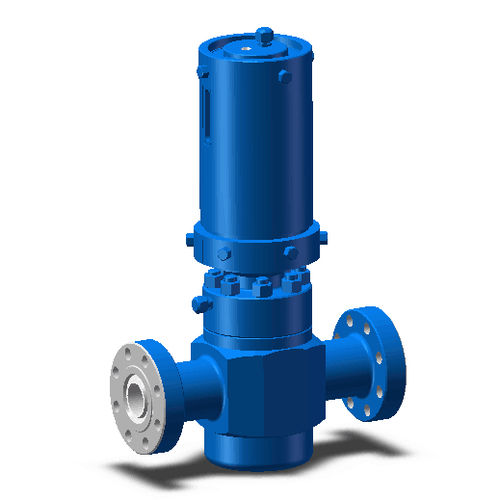

Hydraulic safety valves are made according to API 6A. When oil and gas leaking or firing, used for security protect on well site, the control system includes low pressure control valves, one will be set at a high pressure exceeds either the high pressure setting or drops below the low pressure setting, the valve with automatically close.
Features:
Working pressure: 2000PSI~20000PSI
Nominal Bore: 1.13/16"~7.1/16"(46mm~180mm)
Working Medium: Oil, natural gas, mud,gas, etc.
Working Temperature: -46º C° C~121° C(Class LU)
Material Class: AA-HH
Specification Level: PSL1-4
Performance Class: PR1
