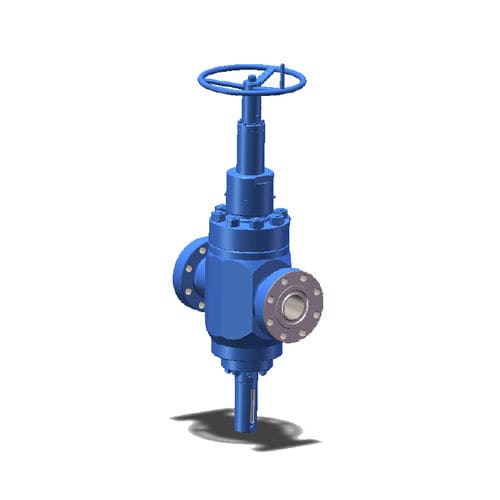

Gate valve with handwheelfor oilfor gas
Add to favorites
Compare this product
Characteristics
- Type
- gate
- Operation
- with handwheel
- Media
- for oil, for gas
- Other characteristics
- high-pressure
- DN
Min.: 46 mm
(1.811 in)Max.: 179 mm
(7.047 in)- Pressure
10,000 psi, 15,000 psi
- Temperature
Min.: -46 °C
(-51 °F)Max.: 121 °C
(250 °F)
Description
BSO Ball screw gate valve with a special design according to API 6A for large-bore applications and high pressure. The design eliminates the need for gear-type torque multipliers, and results quicker manual operation at full working pressure with remarkably low operating torque.
Features：
Pressure rating: 10000 & 15000 PSI
Nominal size: 1.13/16”-7.1/16”(46mm~180mm)
Working medium: Oil, Gas, Mud, etc.
Working temperature: -46℃~121℃
Material level: AA、BB、CC、DD、EE、FF、HH
Standard level: PSL1~4
Performance level: PR1
