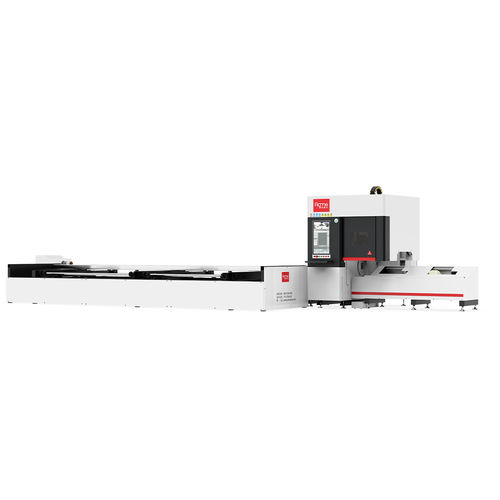

Laser cutting machine LT-6012DB

for metaltubeCNC

OSPRI Autofocus Laser Cutting Head Maintains the same cutting height on metal pipes and ensures high-quality cuts with capacitive sensors in the head. The software automatically adjusts the focusing lens to realize automatic drilling and cutting of different pipe. Intelligent Full Stroke Pneumatic Chuck Square design, stronger passing ability,the clamping force can be adjusted intelligently, suitable for different kinds of pipe processing needs. It has eight-cylinder structure, which the force is twice than the ordinary Chuck, Pocessing Range The maximum processing pipe weight is 200kg, the diameter range of round pipe and square pipe is 10-115mm, and the pipe length is 6300mm. Angle steel, channel steel, I-beam and other profiles are all supported. Universal Type Semi-automatic Loading Intelligent Tube Distribution, Feeding And Seamless Connection With The Pipe Cutting Machine The Maximum Load-Bearing Capacity Of The Whole Machine Can Reach 650kg.
