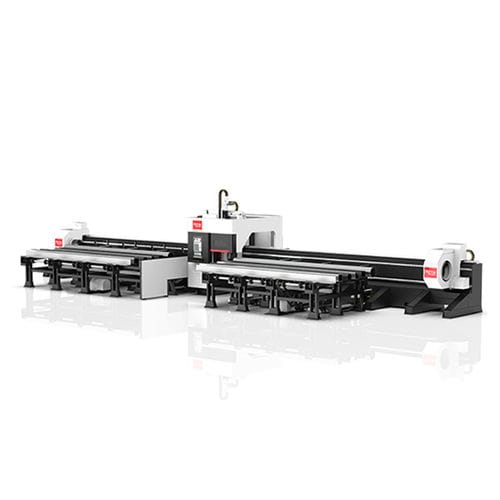

Laser cutting machine LT-12038Tfor metaltubeprofile
Add to favorites
Compare this product
Characteristics
- Technology
- laser
- Material
- for metal
- Product handled
- tube, profile
- Control type
- CNC
- Associated function
- bevel
- Applications
- for industrial applications, for the automotive industry, for metal fabrication, for industrial vehicles, for agricultural vehicles, for shipbuilding
- Other characteristics
- automatic, high-precision, high-efficiency, heavy-duty, three-dimensional
- Tube diameter
Max.: 370 mm
(15 in)Min.: 30 mm
(1 in)- Cutting speed
Max.: 57,000 mm/min
(37.402 in/s)Min.: 0 mm/min
(0 in/s)- Laser power
Max.: 12,000 W
Min.: 1,000 W
- Repeatability
0.03 mm
(0.0012 in)- Overall width
5,500 mm
(217 in)- Height
3,400 mm
(134 in)- Weight
30 t
(33.07 us ton)
Description
OSPRI Autofocus Laser Cutting Head
The intelligent bevel cutting head can rotate 360° infinitely and swing ±45°, and can perform three-dimensional cutting.
Cutting efficiency increased By 20%.
50% Longer cutting life.
Three-chuck True Zero Tailing Wast Cutting Technology
Maximum load-bearing capacity of single tube, super-long tube cutting, and real zero tailing. Improve material utilization and save costs.
Innovative Intelligent Three-chuck Design
Three-chuck linkage, punching at both ends, intersecting line cutting
Maximum load-bearing capacity of single tube, super-Long tube cutting.
Processing Heavy Pipe
The maximum processing pipe weight is 1200kg, pipe length is 1200mm, the diameter range is 30-370mm. Cutting angle steel, channel steel, I-beam and other profiles.
Aircraft Honeycomb Bed, High Precision and Good Performance
Easy to transport. Coaxial Processing. High Precision and Good Performance.
