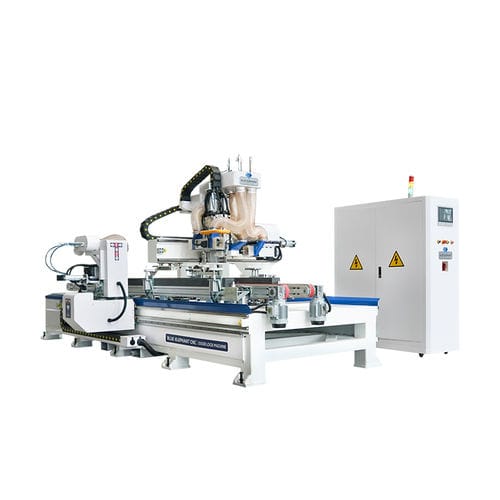

Door lock CNC machining machine EM3.2-1126
4-5 axesuniversalgantry

Door lock CNC machining machine - EM3.2-1126 - Jinan Blue Elephant CNC Machinery Co.,Ltd - 4-5 axes / universal / gantry
Door lock CNC machining machine - EM3.2-1126 - Jinan Blue Elephant CNC Machinery Co.,Ltd - 4-5 axes / universal / gantry
Door lock CNC machining machine - EM3.2-1126 - Jinan Blue Elephant CNC Machinery Co.,Ltd - 4-5 axes / universal / gantry - image - 2
Door lock CNC machining machine - EM3.2-1126 - Jinan Blue Elephant CNC Machinery Co.,Ltd - 4-5 axes / universal / gantry - image - 3
Door lock CNC machining machine - EM3.2-1126 - Jinan Blue Elephant CNC Machinery Co.,Ltd - 4-5 axes / universal / gantry - image - 4
Door lock CNC machining machine - EM3.2-1126 - Jinan Blue Elephant CNC Machinery Co.,Ltd - 4-5 axes / universal / gantry - image - 5
Door lock CNC machining machine - EM3.2-1126 - Jinan Blue Elephant CNC Machinery Co.,Ltd - 4-5 axes / universal / gantry - image - 6
Door lock CNC machining machine - EM3.2-1126 - Jinan Blue Elephant CNC Machinery Co.,Ltd - 4-5 axes / universal / gantry - image - 7
Door lock CNC machining machine - EM3.2-1126 - Jinan Blue Elephant CNC Machinery Co.,Ltd - 4-5 axes / universal / gantry - image - 8
Add to favorites
Compare this product


Characteristics

Number of axes
4-5 axes
Spindle orientation
universal
Structure
gantry
Machined material
for wood
Associated functions
slot drilling, slot milling, punching
Applications
for door lock
Other characteristics
high-performance, high-productivity, multi-spindle
Power

25.6 kW
(34.81 hp)

Weight

3,000 kg
(6,613.87 lb)

Description

Description The CNC door lock making machine is mainly used for processing wooden doors, door frames, window frames, window sash grooves, door locks, door lock steps, door lock hinges, end face paint holes, door closers, hinges, etc, All processing can be completed at one time, which can quickly improve production efficiency and effectively reduce labor costs. in addition, the door lock making machine can also be used for milling, drilling, grooving and punching in the shape of keyholes on the plane and side of wooden doors, and can also be used for grooving and drilling in wooden furniture. Features 1. This machine can be used for multiple purposes. Lock slots, lock steps, lock holes, latch slots, paint holes, door closers, and hinges can all be processed quickly. 2. It can save time, effort and process. This machine is equipped with 7 motion axes. The door width can be adjusted automatically. Lock groove and lockbody are precisely matched. And hinge and lock hole can be processed at the same time. 3.t can measure width, length and thickness automatically, convenient and fast, realizing intelligent and precise processing. 4. The processed door panels are transmitted by through-type transmission rollers, which can be operated intelligently.
