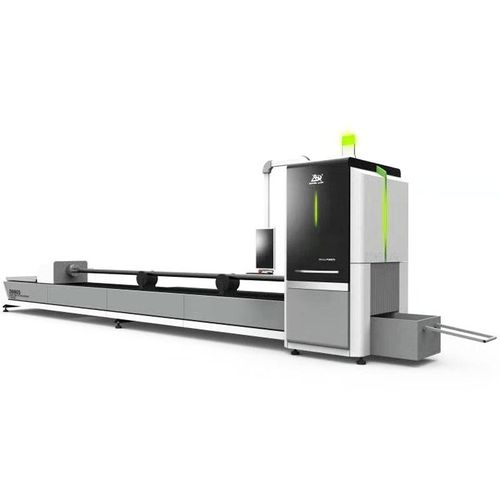

Fiber laser cutting machine

for metaltubeCNC

The metal tube laser cutting machine adopts imported special tube cutting software and has the core technology of efficient cutting, which is the fundamental guarantee for effectively saving materials and improving cutting efficiency. - Bed Frame ：6m 9m 12m metal tube fiber laser cutter customized - Laser ：500w 1000w 1500w 2000w 3000w fiber laser cutting machine tube - cutting material：carbon steel tube,steel tube,,aluminum tube,stainless steel tube - pipe diameter：20mm tube,200mm round tube customized - tube shape：square tube,rectangle metal tube,metal round tube,circular tube The fiber laser tube cutting machine adopts imported special tube cutting software, which is simple in operation, high in precision and strong in professionalism. It can cut round tubes, square tubes, shaped tubes and other tubes. It has the core technology of efficient cutting, which is effective in saving materials and improving cutting efficiency. Fundamental guarantee. - Processing area:6000*2000mm - X/Y axis positioning accuracy:0.05mm/m - Acceleration:0.5G - Repeatability:±0.05mm - Maximum empty speed:60m/min - Minimun line width:0.1mm - Input power:80V/50HZ/100A - Chuck size:165/220/380optional - Output Power:1000kg - Laser wavelength:1064nm - Workbench load:0.5G - Total power protection level:IP54 - Chuck form:Front manual rear linkage or front and rear double - Cooling system:Chiller - Pope processing range:Round tube diameter(20-200)*6000mm，square tube(20-150)*6000mm
