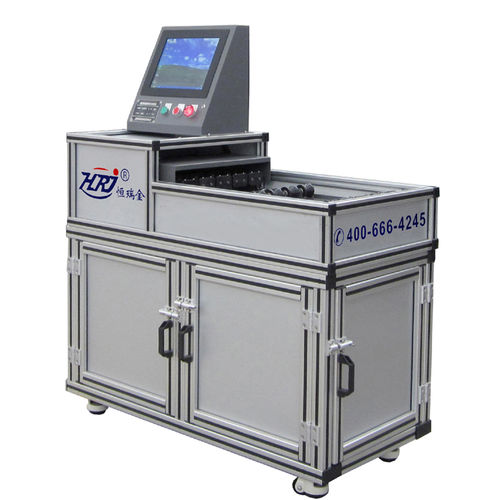

Tensile testing machine SWLT-5

weightautomaticfor round bars

SWLT-5 Automatic Steel Bar Weight and Length Tester DETAIL Function →Before tensile test, the weight deviation test is carried out on the reinforcement specimen to accurately measure its weight and length. →Automatically measure and record the weight deviation and length deviation of Ф3mm-50mm rebar. →Used in automatic measurement of weight deviation and length deviation with diameter Ф3 mm to 50 mm hot-rolled steel bar, plain round bar, ribbed steel bar, straight bar steel, HPB300, HRB400 steel/HRB500, HRB400E/HRB500E, HRB600, HRBF400 / HRBF500, HRBF400E/HRBF500E, CRB550, CTB550/CTB650 steel tensile sample weight and length deviation automatic measurement. Test Standards →ISO10065, ISO6935-1, ISO6935-2, ISO6935-3, ISO 7348, BS 4449, ASTM 615-07, AS-NZS 4671, DIN 488-1, JIS G3112, CNS 560 Features →Ergonomic design, in line with the human - machine - environment system, efficient, healthy, comfortable, safe. →High rigidity, high stability, no vibration impact, streamlined horizontal load frame. →Precision gravity and length measuring sensor, linear width, good stability, high precision. →High speed, low vibration, maintenance-free, silent ac motor drive system. →Multiple protection functions: overload protection;Overcurrent protection;Safety protection;Automatic protection at the end of measurement. Technical Specifications →steel bar tensile specimen size: Ф3mm-Ф50mm →steel bar tensile specimen number: 1-5 bars →weight and length of 5 steel bars can be displayed →measuring range of steel bar length: 500mm-700mm →max. Weight of steel bar: 100kg →load resolution: ≤0.0001kg (0.1g) →length resolution: ≤0.01mm →power voltage: 220V±10%，50Hz
