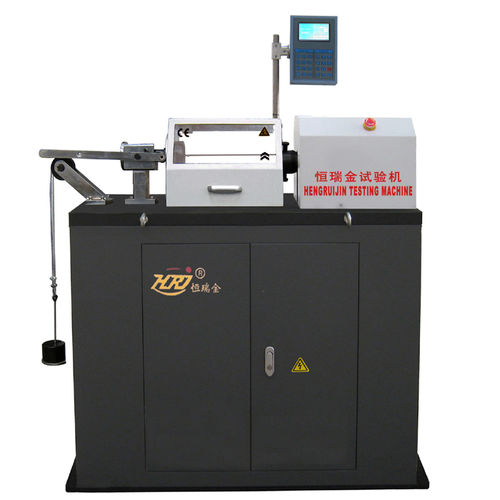

Torsion testing machine NDW-XC3

for wire ropes and strands

NDW-XC1mm/3mm High Speed Wire Torsion Testing Machine DETAIL Introduction 1) Used in unidirection and bidirection torsion tests for metal wires and composite wires, diameter Ф01.0-Ф3.0mm. 2) Used to measure plastic deformation capacity of metallic wires and composite wires during unidirection and bidirection torsion and display surface and interior defects. 3) If equipped with wrapping test accessories, the machine can be used for metal wire wrapping test. 4) Comply with standard ISO9649 Metallic materials-Wire-Reverse Torsion Test and ISO7800 Metallic materials-Wire-Simple Torsion Test. Technical Specification 1) wire diameter: 1.0-3.0mm 2) coaxiality of two chucks:＜Ф0.1 mm 3) distance between two chucks: 0-300mm 4) torsion speed: 0-300r/min 5) pretightening load: 2N-100N 6) counting resolution: 1 7) working voltage: 220V 50Hz 8) dimension (L*W*H): 1240x560x1150mm If wire diameter larger than 3.0mm, please choose NDW-XC5/XC10/XC14
