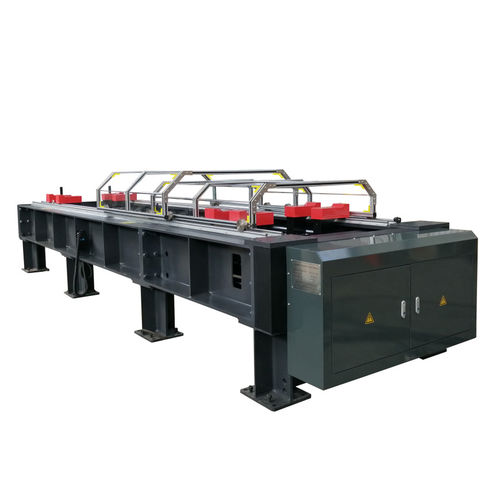

Compression testing machine WLW-300

tensiletensile strengthfor wood panels

1. Application →300kN structural timber property testing machine is used for mechanical properties testing for specification wood, wooden structure parts, frame parts, LVL laminated building blocks, PSL parallel product wood, laminated building blocks, and original wood. →The 300kN structural timber property testing machine is used to test the tension strength parallel to grain, compression strength parallel to grain, transverse tensile strength, compressive strength and elastic modulus along the grain, shear strength along the grain, shear strength at joints, bending strength and elastic modulus of wood. →Comply with standard: AS/NZS 4063.1: 2010 Characterization of Structural Timber 2. Specifications →max.load capacity: 300kN →tensile test space: >2900mm →compression test space: >2900mm →load accuracy: ±0.5 →hydraulic clamping →with lateral restraints for compression test →with protective shield Reference standards →AS/NZS 4063.1:2010, AS/NZS 4357.2, ISO 1033-1, ISO/DIS 12578, ISO/CD 12579,ISO/CD 12580, ISO/CD 18375, ANSI/AITC A 190.1, ASTM D 3737, DIN 1052, EN 386, EN 390, EN 408, BS EN 789, BS EN 326-1, GOST 9624, CNS 11671:2014, CNS 444:2012, ANSI/APA PRG320-2012, EWS S475, APA PS 1-09, APA L294:2011, ASTM D5055-2013, ASTM D3528, NF B51-127-19, ASTM D5456-2010A, APA EWS S550-2005, BS EN 1912: 2012.
