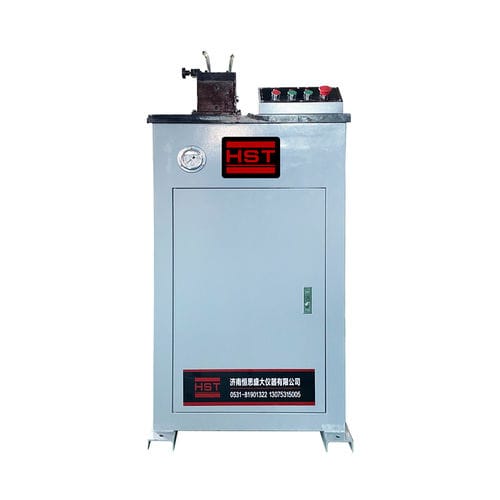

Hydraulic broaching machine VU-2Y

electromechanical

1. Application Impact Specimen Gap Broaching Machine is necessary and special equipment of metallurgy, pressure vessel, vehicles and vessels, construction machine manufacturer industries and departments of science &research 2. Standards: ASTM E23-02a,EN10045,ISO148,ISO083,DIN 50115,GB229-2007 3.Features 3.1 The broach is made of special material and made in special technology, and it has high hardness, good abrasion resistance ability and long serving life; 3.2 This equipment has hydraulic drive double knives and can cut two specimen notches at one time. 3. Main Technical Specifications: • Shape of sample notch : V2 mm,U2mm，(U3mm, U5mm alternative) • Sample size : (10, 7.5, 5)x10x55mm • Cutting mode : Hydraulic • Journey of broach : V2, U2, U3 350mm; U5 380mm • Broaching Speed : 2.5m/min • Broach material : W18Cr4V • Power supply : 380V 50Hz 0.4Kw • Max. Dimension : 660x500x1240mm • Weight : 200kg
