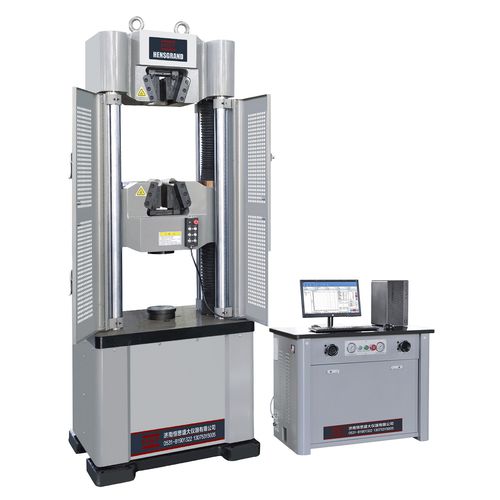

Compression testing machine WEW-2000D
universaltensilebending

compression testing machine
compression testing machine
compression testing machine
Add to favorites
Compare this product

Go to the Jinan Hensgrand Instrument Co.,Ltd website for more information

Characteristics

Test type
compression, universal, tensile, bending, tension, shearing, fatigue, friction, creep, peel force, endurance, stress test, creep-in-compression
Operating mode
computer-controlled, automatic, manual, motorized
Test material
for plastics, material, for chains, for round bars, for wire, for rubber, concrete, for packaging, for rubber, for building materials, for sheet metal, for fiber optics, for asphalt, for textiles, for cement, fabric, for electronic components, for adhesive tape, for plastic pipes, for rebar, for plastic film, for high-strength bolts, for pipe, for leather, for cardboard boxes, for bars and tubes, for rope, for springs, for wire ropes and strands, for composite materials, for paper
Sector
for laboratories, for research and development, for production, for the automotive industry, for the optical industry, for workshops, for the energy sector, for the textile industry, for railway applications, for the packaging industry, for the construction industry, for the electronics industry, for the petroleum industry, for the aerospace industry, for quality control, for the aeronautical industry, universal, for the pharmaceutical industry
Technology
electromechanical, hydraulic, mechanical, electro-hydraulic, dynamic, servomotor, servo-electric, electromagnetic, electro-dynamic, strain gauge
Configuration
vertical, tabletop
Other characteristics
precision, 4-column, static, double-column, axial, high-stability, high-speed, high-temperature, pendulum, rugged

Description

The machine adopts hydraulic loading, Computer Display, easy and convenient to operate. It is mainly used to execute the tension, compression, bending, flexural etc. test for metal materials. Attached with simple accessories and devices, it can be used to test wood, concrete, cement, rubber, and so on.It is very suitable for making test to different metal or nonmetal materials under high toughness and hardness against extreme big loading force. Standards: ISO6892, BS4449,ASTM C39,ISO75001, ASTM A370, ASTM E4, ASTM E8 and BSEN standards. Specifications: Structure 4 columns and 2 screws Control way loading process manual control,computer automatic data dealing Max.load (kN) 2000kN Load accuracy ≤±1% Load range 2%-100%FS Load resolution 1/300000 Deformation Measurement Range 2%～100%FS Deformation accuracy ≤±1% Displacement resolution (mm) 0.01 Displacement error ≤±0.5% Max.piston stroke(mm) 250 Max piston moving speed 0-90mm/min Manual adjustment Crosshead lifting speed 200mm/min Max. tension test space 850mm (can customize) Max.Compression Test Space 650mm (can customize)
