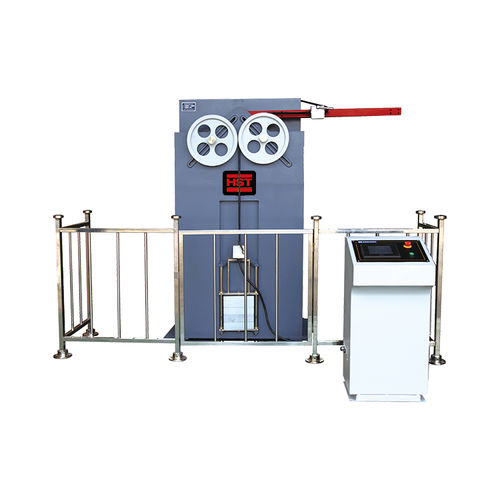

Bending testing machine GWQ-1000

dimensionsmotorizedfor fiber optics

GWQ-1000 Series Optical Fiber Cable Repeated Bending Testing Machine is intended to establish the ability of a fiber optic cable to withstand repeated bending (cyclic flexing). Technical Parameters Bending angle ±90° degree Max. bending cycles 1 - 9999 Frequency range 10 - 30 cycles/min Bending radius (mm) 25, 50, 75, 100, 150, 500 (others upon request) Mass of weights for applying tension Weight structure 27.5kg, 3 pieces of 5kg weight increment, 1 piece of 2.5kg weight increment. Dimensions (L*W*H) Working frame 3,000*720*2,500 mm Control console 400*300 * 800 mm Power 3-phase 4-wire, 50Hz, 1 kW.
