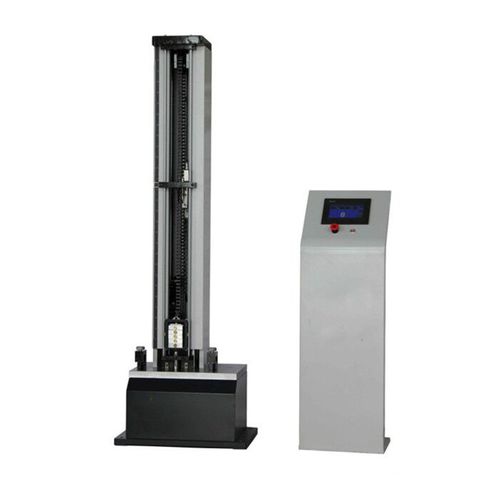

Impact testing machine GCJ-1000

automaticfor fiber optics

Optical Fiber Cable Impact Testing Machine GCJ-1000 Series 1 Overview GCJ-1000 Series Optical Fiber Cable Impact Testing Machine is intended to determine the ability of optical fiber cable withstand impact IEC-60794-1-2-E4 2 Technical Parameters 2.1. Impacting height: 300mm, 1000mm, adjustable. 2.2. Mass of hammer 2.3. Six combinations of 0.5Kg, 1Kg, 2Kg, 3Kg, and 6Kg. 2.4. Testing times range: 1-9999. 2.5. Setting range of frequency Setting range of testing times for national standard: 10～20 times/min. Setting range of testing times for military standard: 10～30 times/min. 2.6. Power supply: 3-phase 4-wire, 50Hz, 2KW. 2.7. Ambient temperature: 10℃～40℃. 2.8. Ambient humidity: less than 80% (Non-condensing).
