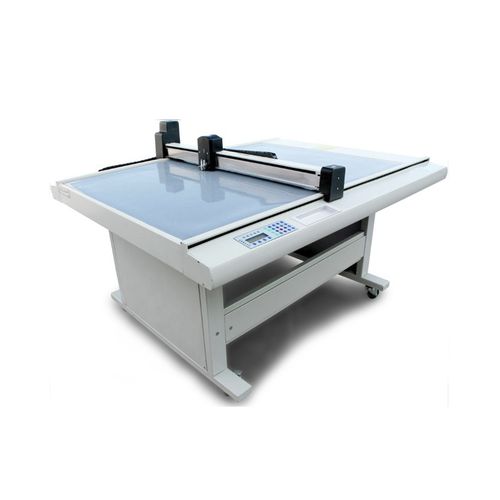

Knife cutting machine DCH10 series

for plasticsfor paperwith digital assistance

DCH10 series card paper box cutting machine is mainly for the card paper and thin plastic box cutting application. It good used in the thin and homogenous material. It’s very capable for the low cost sample making, although the cutting material is homogenous, it has the bright point for the specify material. This machine can cut and crease the materials of card paper, plastic film board etc, by the tool pen, creasing tool and special knife it comes with. Moreover, this machine can be used to as die cutting drawing. The main features: ·Equips with the pen, creasing tool, special knife ·Steel belt driven system, accuracy assured. ·Beautiful appearance by mould cover ·Easy to move with the universal wheel. Model : DCH100906 : DCH101209 : DCH101512 Effective cutting area : 900*600mm : 1200*900mm : 1500*1200mm Driver : Step motor Configuration : Pen, special knife, creasing tool Way of fixing paper way : Vacuum absorbing Driving material : Import steel belt Cut materials : Red hard paper、plastic board、white board、kraft paper、thin PVC Cutting way : Drawing by pen、half cutting、whole cutting Cutting thickness : 0.5-2mm Cutting precision : ≤0.1mm Max speed : 1000mm/s Working time and character : Continuous work, operating computer and cutting at the same time, linear high-speed transmission for data. Transmitting port : International standards: parallel port/RSC232 serial port
