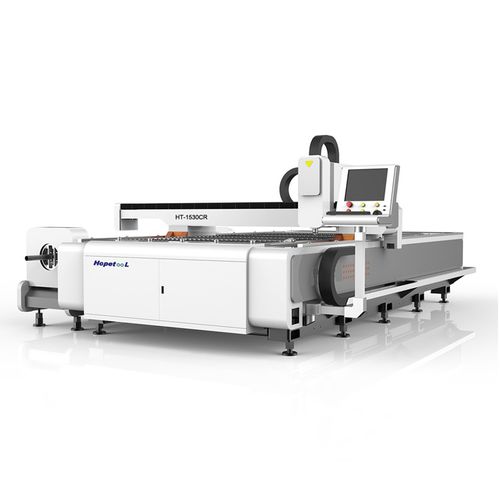

Fiber laser cutting machine HT-1530CR

for metaltubesheet

Fiber Laser Cutting Machine HT-1530CR Characteristic This model is Multifunctional type, can cut both sheet and tube metal, adopts imported rail and heavy racks from Taiwan, Japanese Panasonic servo motor and driver and American laser mech laser head. All this parts match well with each other, machine’s stability is great. Our this fiber not only can cut stainless steel, carbon steel, also can cut some high reflected materials, such as the aluminum and copper. Meet some customers’ needs. Application Material Used for cutting a variety of metal plates, mainly used in stainless steel, carbon steel, galvanized sheet, electrolytic plate, brass, aluminum, steel, various alloy plate, rare metal and other materials. Application insutry Aerospace technology, rocket, plane, robot, elevator, steamship and automobile manufacturing and metal parts processing industry for metal plate, advertisement, kitchen ware, bit tool, hardware etc Machine Model : HT-1530CR Max. working area : 1500×3000mm Laser : 500/750/1000/2000/3000/4000W Laser wavelength : 1080nm Rated power : 10-100% X,Y-axis repeat location accuracy : ±0.01mm Min. cutting line width : 0.02mm Max acceleration : 1.5G Max moving speed : 120m/min
