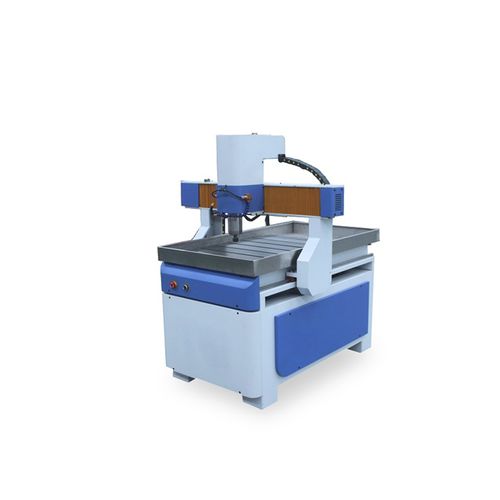

CNC router HT-S6090

spindlemetalstone

Metal And Stone CNC Router HT-S6090 Characteristic 1.high accuracy ball bearing guide screw of taiwan,minimize the slit. 2.imported linear rail,self lubricating glide. 3.our routers have the features of recarving after stop and the power failure may be restored. 4.unique preservation way of the zero point. 5.use for long time and no distortion. 6.this type is suitable for engraving Metal,Stone,wood etc. number : Description : parameter 1 : XYZ working area : 600*900*150mm 2 : Table size : 740*1120mm 3 : XYZ travel positioning accuracy : ±0.01mm 4 : XYZ repositioning positioning accury : ±0.01mm 5 : Gantry : cast-aluminium 6 : lathe structure : casting iron 7 : drive system X-Y axis : Ball screw 8 : drive system Z axis : Ball screw 9 : Spindle power : 2.2KW 10 : Max velocity : 8m/min 11 : Max working speed : 6m/min 12 : Spindle speed : 0-24000rmp 13 : work mode : Stepper 14 : Working voltage : AC220V 15 : Command language : G code
