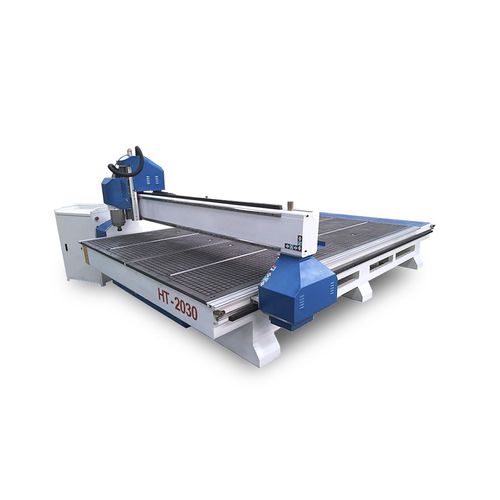

CNC router HT-2030C

spindlevacuumhigh-speed

CNC Router HT-2030C characteristic 1.Water cooling spindle,high precision,long life time,steady working,easy to start up. 2.thicken square pipe stucture ,well welded, no distortion for whole structure high precision ,and long life time. 3.DSP controller system with USB interface,working without connecting with computer during working and easy to control. 4.Software:CAD/CAM designing software such as type3/artcam/castmate/weitai etc. 5.auto oilling system ,easy to operate by pressing one key. 6.seperated control system makes operation easily. 7.Adopt high speed stepper motor and drivers,and two motors for Y axis.max speed is 25mm/min. 8.The vacuum table holds tightly the carving materials which makes operating more reliable and convenient. number : Description : parameter 1 : XYZ working area : 2000*3000*200mm 2 : Table size : 2180*3500mm 3 : XYZ travel positioning accuracy : ±0.025mm 4 : XYZ repositioning positioning accury : ±0.025mm 5 : Table surface : Bakelite vacuum table combiated T slot
