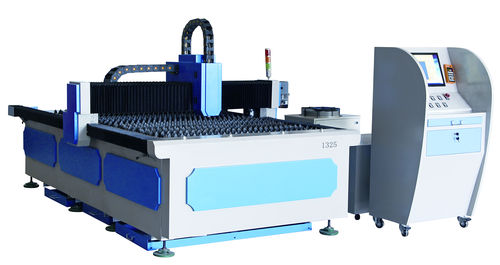

Fiber laser cutting machine JQ1530

for stainless steelsheet metalCNC

Steel tube and sheet cutting machine JQ1530 fiber 300Watt / 500watt With stable and practical advantages, high price performance. cost-effective. ensure the machine stability,fast cutting and long life span. It can cut steel and stainless steel; metal box, electronic case, mail box, milk box, etc. Technical Parameter --Model: JQ1530 Fiber-300/ 500 --Working Area: 1500*3000mm --Number of axes：2-axis --X travel: 1500mm --Y travel: 3000mm --with rotary system for cutting tube, auto-feeding --Sizes: large-format, medium size --Laser type: Fiber Laser Module --Laser Power: 300W, 500W fiber --Driving Mechanism: Ball Screw & servomotor/ Heavy rack & servomotor --Positioning Accuracy: ≤±0.01mm --Repeatability Accuracy: ≤±0.01mm --Min. Line Width: 0.1mm --Smallest character: 1*1mm --Control type: CNC --Cooling Mode: Water Cooling Chiller --Power Supply Requirement: 220V/50Hz --Continuous Working Time: 24Hours --Equipment size: 450*220*195cm --Whole power consume: 3KW-8KW --Structure: gantry type --Max. Cutting Speed: 500mm/s --Max Thickness: 5mm (depend on different material) Application: stainless steel, carbon steel, metal sheet, thick sheet metal. metal tube, round tube, square tube, etc. Certificate： SGS, FDA, CE
