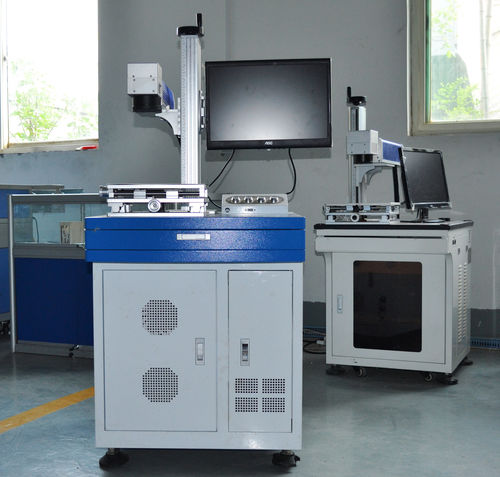

JQ-20 watt fiber marking machine is my company according to the market development innovation research and development of a new laser marking system,high speed scanning galvanometer type laser marking.
This system has the scanning speed,,high repeat precision ,durability is good and other characteristic. Ensure the high quality laser marking machine.
The company adopts the most advanced at home and abroad a laser mark quality and beautiful effect, especially suitable for mass production and assembly line work.
JQ -20 suitable for gold, copper and stainless steel silver aluminum carbide chrome plating titanium metal and ceramic PVC plastic epoxy resin leather etc.
1. Universal
2. High performance-price ratio
3. Advanced design
4. Stable performance/ high-performance
5. High integration
6. Precise control
7. Stable operation
8. High-speed
9. Automatic
10. high-precision
11. Cost-effective
Technical Parameter
--Model: JQ-20
--Working Area: 110*110mm (optional 200*200mm)
--Number of axes:3-axis
--X travel: 110mm
--Y travel: 110mm
--Sizes: small/ compact
--Laser type:Fiber Laser Module
--Laser Power: 10W, 20W, 30W
--Repeatability Accuracy: ≤±0.0025mm
--Min. Line Width: 0.01mm
--Smallest character: 0.2mm
--Cooling Mode: Water Chiller/ air cooling
--Power Supply Requirement: 110V/60HZ 220V/50HZ
--Continuous Working Time: 24Hours
--Equipment weight: Approximate
--Equipment size: 70*80*137cm
--Whole power consume: 0.5-1.5KW
--Max. Scanning Speed: 8000mm/s
--Max Thickness: depend on different material
Certificate:
SGS, FDA, CE
