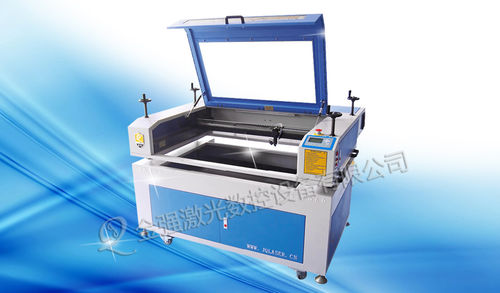

Laser engraving machine JQ1060

CO2 lasermetalglass

JQ1060/1390 High-precision Laser Engraving Machine(separable) Performance Features 1). The upper part and the under part of the machine are separated. The upper part can put on large and thick marbles/stones/granites ,etc.directly. 2). The machine is with double up-down worktables. The upper part and the under part can move up and down automatically, which are very convenient for thick material. 3). Very useful for small house doors. Applicable Materials acrylic , crystal , plastic , metal coating , painted metal , organic glass , wood planks(light planks) , marble , carton , glass , fabric , leather , bamboo ware , double-color boards , paper , shells , coconut shells , ox-horns , resin animal grease , ABS boards , lamp shade , ect. Technical Parameter --Model: JQ-1390/1060 --Working Area: 1300*900mm/ 1000*600mm --Number of axes：3-axis --X travel: 1300mm --Y travel: 900mm --Sizes: small/ compact, medium size --Laser type: CO2 laser tube --Laser Power: 60watt/ 80watt --Driving Mechanism: Belts & stepper motor --Positioning Accuracy: ≤±0.01mm --Repeatability Accuracy: ≤±0.01mm --Min. Line Width: 0.1mm --Smallest character: 1*1mm --Control type: CNC --Cooling Mode: Water Chiller/ Water pump --Power Supply Requirement: 110V/60HZ 220V/50HZ --Continuous Working Time: 24Hours --Equipment weight: Approximate 350KG/ 300KG --Equipment size: 181*153*105cm/ 151*123*105cm --Whole power consume: 1-3KW --Max. engraving Speed: 7000mm/min Certificate： SGS, FDA, CE
