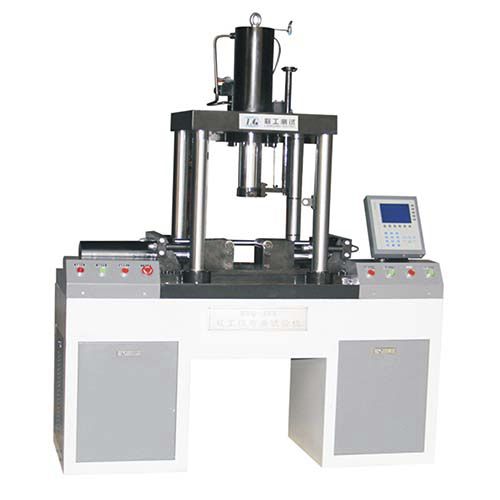

Bending testing machine YGBS-500A
PLC-controlledfor round barsfor bars and tubes

Bending testing machine - YGBS-500A - Jinan Liangong Testing Technology Co., Ltd - PLC-controlled / for round bars / for bars and tubes
Bending testing machine - YGBS-500A - Jinan Liangong Testing Technology Co., Ltd - PLC-controlled / for round bars / for bars and tubes
Bending testing machine - YGBS-500A - Jinan Liangong Testing Technology Co., Ltd - PLC-controlled / for round bars / for bars and tubes - image - 2
Bending testing machine - YGBS-500A - Jinan Liangong Testing Technology Co., Ltd - PLC-controlled / for round bars / for bars and tubes - image - 3
Add to favorites
Compare this product


Characteristics

Test type
bending
Operating mode
PLC-controlled
Test material
for round bars, for bars and tubes, for rebar
Sector
for laboratories, for research and development, industrial
Technology
hydraulic
Configuration
vertical
Other characteristics
4-column

Description

YGBS-500A Double-station Bending Testing Machine This machine developed according to the national standard GB/T 1499-2010, GB/T 232-2010 and YB/T 5126-2003 requirements. It can bend rebar under HRB400, within φ40. Its structure performance completely conform to the requirement of the test specification. Overview YGBS-500A type a vertical double working station hydraulic bending testing machine adopts the combination technology of hydraulic loading and single chip microcomputer system , it is mainly used for the bending test for metal or nonmetal material or product manufacturability. It is composed of the test host, oil source (hydraulic power source), measurement and control system, test instruments of four parts. YGBS-500A type bending testing machine meet the GB/T 232-99 metal material bending test requirements. Bending distance through the level of oil cylinder stroke control, which is very convenient. Test force does not step all the test, the resolution is better than 1.5 N, test forces of relative error within ±1%, test range 1% - 100%. The tester can be used in metallurgical construction quality inspection department, production enterprise deformed steel bar bending, can also be used for construction materials, steel welding point bending performance testing, which is the commonly used equipment for metallurgical enterprises, research institutes, quality inspection, construction, railway, transportation, colleges and universities and the non-ferrous metal industry material bending performance test and study.
