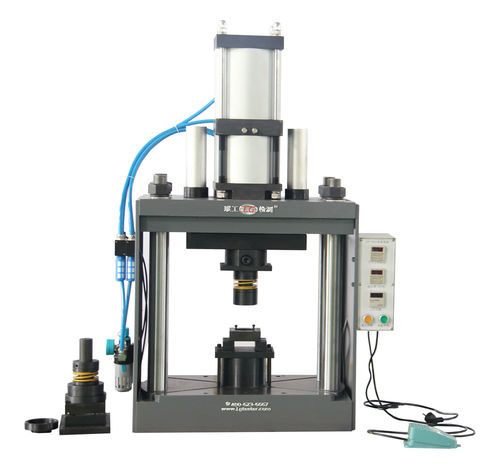

Automatic sample preparation system LGZY-30TBT

deep drawing

First, Device description: In order to achieve the purpose of preparing deep drawing cup round sample, our company provides a pneumatic die feeder, which meets the requirements of GBT24183-2021 "Metallic Materials-Sheet and strip-Earing test", to produce φ60mm round discs, and the thickness range of sample preparation is 0.15 -3mm. Using a single drive source to drive multiple components at the same time, which has the characteristics of unified processing rhythm, high processing accuracy, and improved processing efficiency. Second, Structure diagram: The device includes the base body part, drive part, guide part, pneumatic system, electric control system, lower mold component, upper mold component mounting parts, etc; During operation, it is only necessary to manually pass the strip sample that cut to 100mm wide through the pressing die, and click the "foot switch" button to start the blanking operation. Third, Main technical parameters: 1. Working pressure: 250KN; 2. Fast forward force: 8.5KN; 3. Return force: 6.6KN; 4. Total stroke of piston: 200mm; 5. Force stroke: 35mm; 6. Working cycle: 3.2 seconds/time; 7. Downward speed: 100mm/S; 8. Pressure holding time: set arbitrarily; 9. Operation mode: foot switch; 10. Air consumption: 11L/time; 11. Air source pressure: 0.7MPa; 12. Column spacing: 480mm; 13. Closing height: 380mm;
