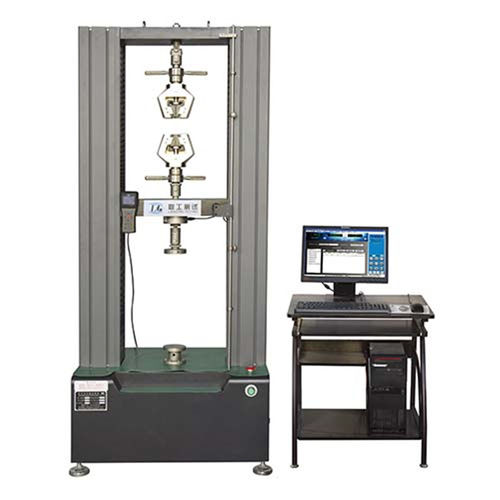

Bending testing machine

compressiontensileshearing

Plastic bending testing machine is an electronic testing machine for testing the bending performance of thermoplastic materials, hard thermoplastic materials, thermosetting materials and reinforcing fiber thermosetting and thermoplastic composite materials. It can measure the bending strength, deflection, elastic modulus and other parameters of materials. The plastic bending test machine developed by Liangong can not only test the bending performance of plastics, but also test the mechanical properties of plastics and rubber in tension and compression. With other suitable accessories, it can also be used for tensile, compression, bending, shearing, peeling and other tests of other metal and non-metal materials. Meet GB, ISO, DIN, ASTM, JIS and other relevant domestic and international standards for testing and providing data. 1. Maximum test force: 50kN/30kN/20kN/10kN 2. Accuracy level: 0.5 level 3. Test force measurement range: 0.4%~full scale 4. Test force indication error: within +0.5% of indicated value 5. Test force resolution: #1/300000 of the maximum test force, no bins for the whole process, and the resolution of the whole process remains unchanged 6. Deformation measurement range: 0.2% ~full scale 7. Deformation indication error: within +0.5% of indication value 8. Force control rate adjustment range: 0.005~5%FS/s 9. Deformation rate adjustment range: 0.005~5%FS/s 10. Adjustment range of displacement rate: 0.001~500mm/min 11. Effective test width: 400mm 12. Effective stretching stroke: 700mm (can be customized according to user needs) 13. Effective compression stroke: 700mm 14. Overall dimensions of the host (lengthwidthxheight): (760×460x1900) mm
