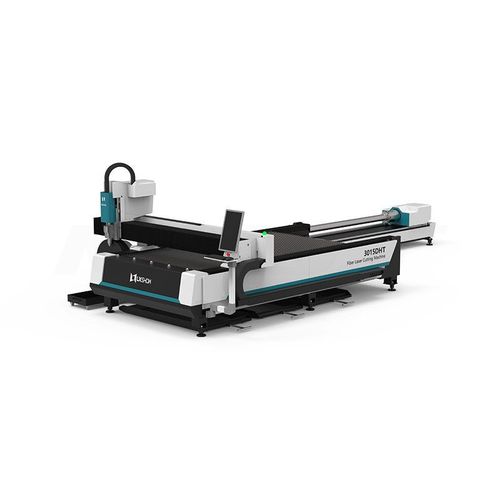

Fiber laser cutting machine LX3015DHT

for aluminumfor stainless steelfor carbon steel

LXSHOW LASER LX3015DHT is a product specially designed for sheet metal laser cutting machine. It has stronger cutting ability and higher cutting precision. Do you want to know more about it? The product details page below can help you. Heavy duty tube welding bed, with heavy weight, low center of gravity, convenient feeding metal materials and stable operation. The bed is protected by fire-resistant bricks to prevent the bed from being deformed by heat. Adopted the integrated aviation aluminum beam reduces the weight of the beam and maximizes the rigidity of the beam. The platform frame adopts a grouped design to improve the overall load-bearing capacity. The diameter 220mm large dust removal duct ensures the dust removal effect. Gear is equipped with felt wheel automatic lubrication as standard, which can fully lubricate the gear, improve gear’s service life and prevent the accumulation of lubrication oil, which may cause fire hazards. The Y-axis cover is equipped with stainless steel armor protection as standard to prevent burn and improve the service life of the organ cover. Rotary Length: 6m standard,8m and other size can be customized. Rotary Diameter: 160/220mm is standard. Other size can be customized. Chuck: Both pneumatic control Pneumatic Chuck Clamping Design It adopts an pneumatic clamp design on both sides and it can modulate the center automatically.The diagonal adjustable range is 20-220mm(320/350 is optional)
