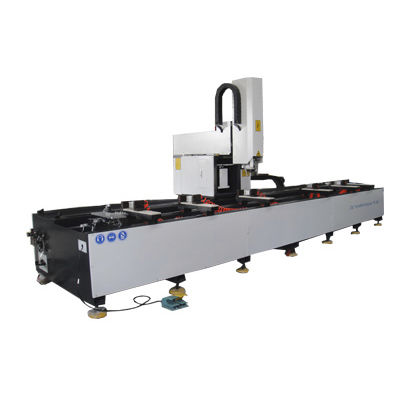

3-axis machining center

verticalcolumn typefor aluminum

3 axis CNC profile machining center for curtain wall and win We are dedicated to milling,chamferring,drilling for profiles which are widely used in curtain wall, windowsted , cladding facades, modular office system, reflex wall system,uniflex wall system,united wall system,glass partition wall, light weight auto car industry, screens, railing parts. X-axis stroke(mm) 3450/4000/5000/6000 Y-axis stroke 300mm X-axis feed rate 0~60m/min Y-axis feed rate 0~48m/min X-axis positioning accuracy ±0.025mm Y-axis positioning accuracy ±0.05mm Z-axis stroke 200mm Repeat location accuracy ±0.02mm Z-axis feed rate 0~20m/min Roughness Ra 6.3 um Z-axis positioning accuracy ±0.02mm Spindle Power Italy HSD 7.5KW-9KW Power Specification 380V/50Hz Spindle Speed 0~24000rpm Total Power of Machine 13kW Working Pressure 0.6～0.8MPa Control system Taiwan SYNTEC Tool bank(Disk type) 8 pcs Feature 1.Using advanced industrial CNC systems, friendly human-machine interface, device operation is simple 2.Suitable for aluminum alloy, aluminum and wood composite profile, profiles and other light alloys of copper, as well as the u-PVC profile processing 3.Bed made of high strength steel welded structure, completed after thermal aging treatment of machining in one clamping 4.Adopts imported high precision linear guideways, ball screws, gear racks and servo motor, ensuring smooth motion, positioning and processing of high precision 5.High-quality imported high speed spindle ensure stability, stability of rotation noise, cutting ability 6. Auto tool changer system,disk type,can change your tools quickly.Industry Application：Transportation products manufacturing
