Cyclone mill WF-B series
horizontalfoodcompact

Cyclone mill - WF-B series - Jinan Shengrun Machinery Co., Ltd. - horizontal / food / compact

Add to favorites

Compare this product

Characteristics

Technology: cyclone
Orientation: horizontal
Product applications: food
Other characteristics: compact, stainless steel, high-speed
Rotational speed: 2,200 rpm, 2,800 rpm, 3,400 rpm, 3,800 rpm
(13,823 rad.min-1, 17,593 rad.min-1, 21,363 rad.min-1, 23,876 rad.min-1)
Motor power: 6 kW, 8 kW, 19 kW, 22 kW, 30 kW
(8.16 hp, 10.88 hp, 25.83 hp, 29.91 hp, 40.79 hp)
Machine length: 3,800 mm, 3,930 mm, 4,800 mm, 5,500 mm, 6,800 mm
(150 in, 155 in, 189 in, 217 in, 268 in)
Machine width: 1,100 mm
(43 in)
Machine height: 2,700 mm, 2,900 mm
(106 in, 114 in)

Description

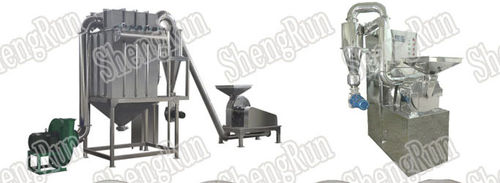

Related presentations Main application: This machine is made up with grinder, impulse precipitator, cyclone separator, blower and electric control cabinet. It has some advantages, such as simple and compact structure, easy to be disassembled and cleaned, easy and simple to handle, low energy consumption, fineness can be controlled (by screen), no temperature rising in machine cavity, wide range of application. The production process can be continuous. This machine has reached the international advanced level, which can be used for grinding materials in food industry, feed industry, pharmacy industry, chemical industry. The main material of this machine is stainless steel. It is well-made, elegant appearance and following the requirements of GMP. Working principle: Material is fed from hopper into grinding room, and sheared and grinded by high-speed revolving blades. Then the powder is conveyed into cyclone separator by negative pressure wind transported method. Bag filter is used for discharging dust, and suction box is used for collecting the dust (after being filtrated).
