CO2 laser cutting machine 1390

for steelfor rubberfor PVC

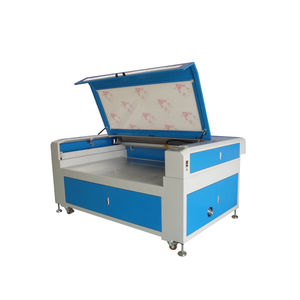

CO2 laser stone engraving machine sinking worktable SIGN 1390 Model: SIGN-1390, SIGN 1318, SIGN 1325 Cutting area: 1300*900mm/ 1300*1800mm/ 1300*2500mm Laser power: Reci 80w/90W/100W/150W Driving system: Stepper motor Laser type: CO2 sealed laser tube , water cooling Engraving speed: 0-60000mm/min Cutting speed: 0-40000mm/min Laser output: 0-100%software setting Resetting positioning accuracy: ≤±0.01mm Power supply: 220v/50hz Operating temperature: 0 degree -45 degree Operating humidity: 5-95% Min shaping character: English 1.0*1.0mm Graphic format supported: BMP, PLT, DST, DXF, AI Software supported: TAJIMA, CoreIDraw, Photoshop, AutoCAD Volume: 4.6CBM/8.7CBM/ 11.5CBM Gross weight: 550KGS/ 850KGS/ 1000KGS Warranty: Two years Machine features 1.Countertop sinking machine bed, easy to out on heavy stone, and stronger to hold heavier materials. 2.SIGN-1390 1318 1325 CO2 laser stone engraving machine, are mainly used to engrave on stone. like marble, granite etc. 3.Widely applied in craft gifts, souvenir, tombstone, advertising signs, and many other industries. 4.Machine working size can be selected according to your needs. 5.Customization is supported. Optional: 1. Motorized up-down table. To increase virtual working distance of Z. For thick materials and rotary attachment. 2. Rotary Used to engrave round materials, such as bottles. 3. Red dot For finding the light 4. Auto focusing Machine adjusts the focal length automatically before engraving and cutting, which replaces manual focusing, improving working efficiency. Packing First of all, we brush the guide with oil to protect it from rust. Second, packing the machine with film against damaging the surface.
