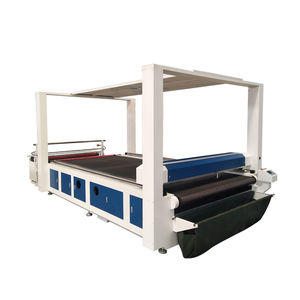

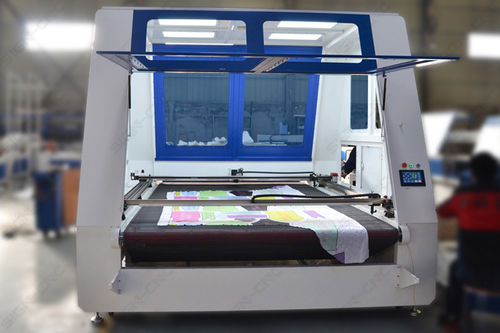

CO2 laser cutting machine 1630

for fabricsengravingwith water cooling

SIGN-1630 Co2 Fabric Laser Cutting Machine With CCD Technical Parameters ： Machine Model SIGN-1630 Working Size 1600x3000mm Laser Power 80W / 100W / 150W Laser Type CO2 sealed high quality, water-cooling Driving System Step motor Resetting Position Accuracy ≤±0.01 Engraving speed 0-70,000mm/min Cutting Speed 0-40,000mm/min (1,574inch/min) Power Supply 220V/50Hz, 110V/60Hz, Operating Temperature 0-45°C Operating Humidity 5-95% Min. Shaping Character English 1.0*1.0mm Operating System DSP Graphic Format Supported BMP, PLT, AI, DST, DXF Software Supported Coreldraw, Photoshop, AutoCAD, Tajima Packing Dimension(cm/in) 2200x2060x1520mm Net Weight 570kg Standard accessories 1×Air Pump(installed inside the machine) for Air Assist (for blowing off debris as the laser engrave or cut) 1×Exhaust(installed inside the machine) with Tube ducts ( for extracting gases from the work area) 1×Water pump 1×USB Cable (connecting PC and laser) 1×DVD (Including software, User manual, Guiding videos etc.) 1×Power Cable 1×Tool box Optional parts Rotary can engrave both regular and irregular round or planner objects Equipped with auto lifting platform, this machine is convenient for users to engrave materials with different thickness
