CNC router 1325

3-axismulti-spindle

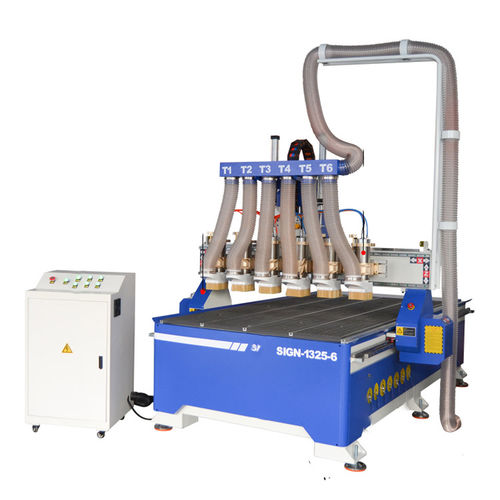

SIGN-1325 Six-spindles CNC Router Machine Features: 1.Welded structure of thick profiled steel and inner stress removed by vibration ageing treatment, strong lathe bed makes the machine with rigidity, no distortion. 2. Imported high-precision Hiwin Rail Linear Bearings, smooth movement, to ensure that the machine tools high-precision. 3. Using well-known domestic brands of water-cooled brushless spindle, low noise, and strong cutting ability, to ensure the long time working. 4. Six spindles can work simultaneously, greatly improving production efficiency. Technical Parameter: Model: SIGN-1325 Six-Spindles CNC Router X,Y Working Area:: 1300*2500mm Table Size:: 1300*2500mm Z feed Height: 200mm X,Y,Z repositioning Accuracy:: ±0.01mm Frame:: Steel tube structure X, Y Structure:: Rack and Pinion Drive, Hiwin Rail Linear Bearings Z Structure:: Hiwin Rail Linear Bearings and Ball Screw Max. Power Consumption: : (Without spindle) 2.0Kw Max. Rapid Travel Rate:: 33000mm/min Max. Working Speed:: 25000mm/min Spindle Power:: 0.8 / 1.5 / 2.2KW * 6 Spindle Speed:: 0-24000RPM Drive Motors:: server system Working Voltage: : AC380V/50/60Hz,3PH (Option: 220V)) Command Language:: G code Operating System:: DSP A11 X,Y Resolution: <0.01mm Software Compatibility:: Type3/UcancameV9 software, (Option: Artcam software) Running Environment Temperature:: 0 degree - 45 degree Relative Humidity:: 30% - 75% Guarantee: One year
