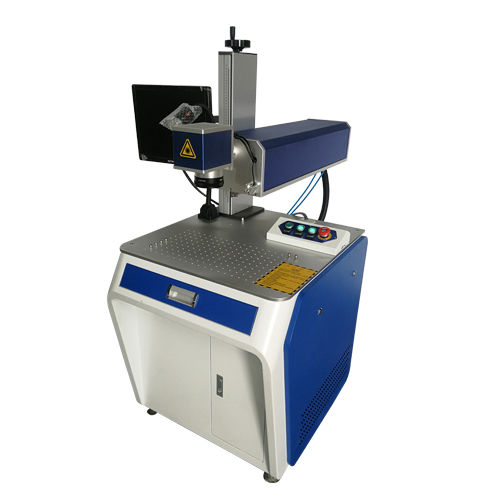

Fiber laser marking machine

UV lasermetalhigh-speed

UV laser marking machine for metal 1.Machine Features 1. Fiber laser system and high-speed Galvanometer . 2. Fiber laser marking is steady and can continuously working 12-24 hours 3. High precision and extremely fast speed, marking depth is controllable optionally 4. Wide application, it can mark all of the metal materials and some non-metal materials 5. The marking lines are clear, it can withstands heavy wearing 6. The optical system is fully sealed, it can prevent the dust enters laser body and reduces the equipment failure rate 2.Technical Parameters Model: SIGN 20W: SIGN 30W: SIGN 50W Laser wavelength: 1064nm Laser type: Fiber Acousto-optic modulation frequency: 20hz-200khz Max scanning precision: 8000mm/s Repeatable accuracy: 0.001mm Min letter: 0.2mm Min line width: 0.01mm Marking area: 110*110mm/200*200mm/300*300mm Cooling system: Air cooling Working temperature: 0 degree – 35 degree Working humidity: 0-90% with no condensation Power supply: 220v/50hz Optional Parts: Rotary Process Materials: Metal and some Non-Metal Machine Dimension: 0.80 * 0.30 * 0.65 4. Optional Marts : We have 2 rotary for your Optional. 1.D80mmFor circle or cylinder materials marking 2. D=50mm For ring,bracelet or other circle jewelry insider and outside engraving 5.Applicable Materails and Samples Many type of metal: Gold, Silver, Stainless Steel, Copper, Aluminum, chrome Brass, etc. Alloy and metal oxides:Anodized Aluminum. Some non-metal materials & Special surface treatment: silicon wafer, ceramics, plastic, rubber, epoxy resin, ABS, Printing ink, Plating, Spraying, Coating film.
