Plasma cutting machine 1 series

for steelfor aluminumfor titanium

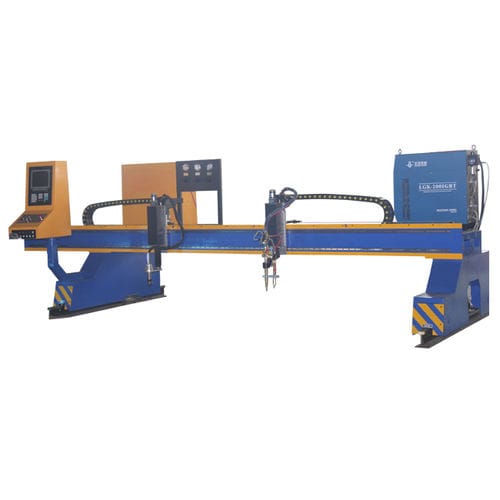

SIGN-1325 / SIGN-1530 Metal Plasma Cutting Machine Machine Features： 1. The machines’ body is strong, rigid, high precision, reliable and durable. 2. Imported high-precision Hiwin Rail Linear Bearings, smooth movement, to ensure that the machine tools high-precision. 3. Excellent performance on cutting illuminated letters for advertising and channel letters on metal surface board 4. Designer perfectly, select the best machine accessories, to minimize the failure rate preferred. 5. Small cutting gap, no residua 6. High cutting speed, high accuracy and low cost. 7. Advanced CNC control system, auto arc, arcing success rate over 99%. 8. Support G code files of Wentai, ARTCAM, Type 3 software. Also support DXF files of AUTOCAD by transfer software. Control system supports U disk file transfer, easy operation 9. Adopt well known plasma power supply and domestic cutting torch. Technical Parameter ： Model : SIGN-1325 / SIGN-1530 Plasma Cutting Machine Working area(X*Y): 1300×2500 mm / 1500×3000mm Working material: Iron, Steel, Aluminum sheets, Galvanized sheets, Titanium plates Cutting thickness: 0.5-15mm Cutting speed: 0-8000mm/min Power: 8.5kw Input voltage: 3 phase 380V Operating System: DSP Drive Motors: Stepper system Power frequency: 50HZ Plasma power: 60A or 100A Files transfer: USB interface Arc: Untouched arc striking
