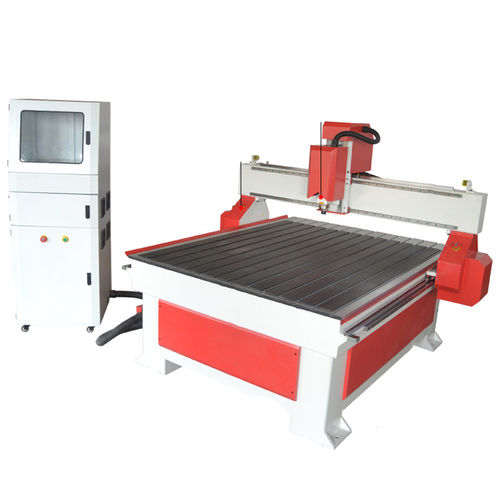

Multi-spindle carving machine 1313

SIGN-1313 Multi- spindle Carving Machine Machine Features: 1. The machines’ body is strong, rigid, high precision, reliable and durable. 2. Imported high-precision Hiwin Rail Linear Bearings, smooth movement, to ensure that the machine tools high-precision. 3. Using well-known domestic brands of water-cooled brushless spindle, low noise, and strong cutting ability, to ensure the long time working. 4. Ten spindles can work simultaneously, greatly improving production efficiency. 5. Designer perfectly, select the best machine accessories, to minimize the failure rate preferred. Structure： Technical Parameter: Model: SIGN-1313 Multi- spindle Carving Machine X,Y Working Area:: 1300*1300mm Z feed Height: 200mm X,Y,Z repositioning Accuracy:: ±0.01mm Frame:: Steel tube structure X, Y Structure:: Rack and Pinion Drive, Hiwin Rail Linear Bearings Z Structure:: Hiwin Rail Linear Bearings and Ball Screw Max. Power Consumption: : (Without spindle) 2.0Kw Max. Rapid Travel Rate:: 33000mm/min Max. Working Speed:: 25000mm/min Spindle Power:: 0.8 / 1.5 / 2.2KW * 6 Spindle Speed:: 0-24000RPM Drive Motors:: Stepper system Working Voltage: : AC380V/50/60Hz,3PH (Option: 220V)) Command Language:: G code Operating System:: Ncstudio (options: DSP /Mach3 PC Software) X,Y Resolution: <0.01mm Software Compatibility:: Type3/UcancameV9 software, (Option: Artcam software) Running Environment Temperature:: 0 degree - 45 degree Relative Humidity:: 30% - 75% Guarantee: One year
