Flame cutting machine

plasmaprofileCNC

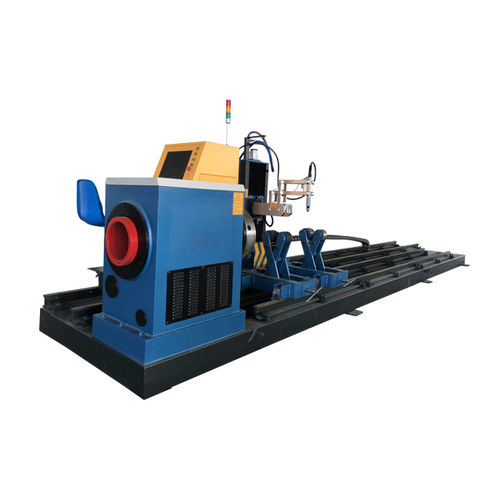

Brief introduction Pipe CNC cutting machine for round pipe. It can cut and bevel carbon steel, stainless and other material are widely used in pressure vessel pipes, pipe processing, network structure, steel structure, marine engineering, oil pipelines and other industries. Features 1,Adopt welding platform, heavy rail and improve the overall bearing weight, human design human-computer exchange more convenient and reasonable, stable operation and increased life expectancy. 2,Independent research development to optimize CNC pipe systems, auto CAD version of the engineering design can generate standard G code directly, three-dimensional simulation of the operation, node expansion, long split pipe, fittings optimization, over sized EGES DXF SAT and STL software compatibility and lifetime free upgrade process can be modified according to user needs 3,Taiwan’s Advantch industrial computer can be programmed directly on the machine. Using menu-select input cutting parameters such as diameter, wall thickness, bevel angle deviation compensation data. By SIGN CNC professional pipe cutting applications for a seamless connection. Mode: KR-XY Round pipe CNC cutting machine Cutting range: 6m 9m 12m( customized ) Machine size: 7800*1800*1650mm( customized ) Cutting method: Flame/plasma Flame cutting speed: 20—700mm/min Plasma cutting speed: 500—3500mm/min or upon the plasma power Control system: Advantech industrial computer Plasma Max. hole thickness: 14mm Plasma Max. edge cutting thickness: 18mm Plasma torch anti-collision system: yes Plasma bevel: 6-14mm Driving mode: Servo Software: pipe apply software Working condition Working pressure of compressed gas: Above 7mpa
