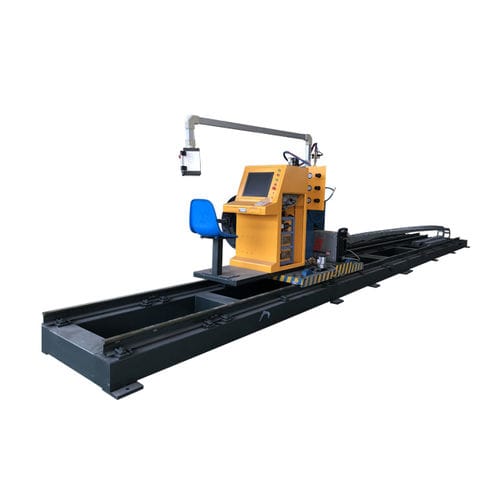

Flame cutting machine

plasmafor metaltube

8 axis cnc plasma metal cutting machine for pipe Product Introduction 1. Adopt welding platform, heavy rail and improve the overall bearing weight, human design human-computer exchange more convenient and reasonable, stable operation and increased life expectancy. 2.Independent research development to optimize CNC pipe systems, auto CAD version of the engineering design can generate standard G code directly, three-dimensional simulation of the operation, node expansion, long split pipe, fittings optimization, over sized EGES DXF SAT and STL software compatibility and lifetime free upgrade process can be modified according to user needs 3. Taiwan’s Advantch industrial computer can be programmed directly on the machine. Using menu-select input cutting parameters such as diameter, wall thickness, bevel angle deviation compensation data. By professional pipe cutting applications for a seamless connection. Technical parameters: Model 8 axis pipe square tube CNC cutting machine Square tube Width 50-400mm ,can be customized Round pipe Diameter 50-630mm ,can be customized H beam Width 50-400mm ,can be customized Cutting method Plasma or flame Plasma power Hypertherm 45A, 65A, 85A, 105A, 125A, 200A. Flame cutting thickness 6-60mm Plasma cutting speed 500-3500mm/min A axis Bevel angle +-45 degree B axis Bevel angle +-45 degree Plasma bevel thickness 6-14mm Flame bevel thickness 6-40mm Control system Professional pipe cutting control system Computer Taiwan Advantech Industrial Computer Driving motor Japanese Panasonic Servo motor with reducer Software Pipe Nest software Load 8t Weight and size Size 12000*2200*2100mm (Length*width*height) Weight 7t
