Magnetic extensometer 3800

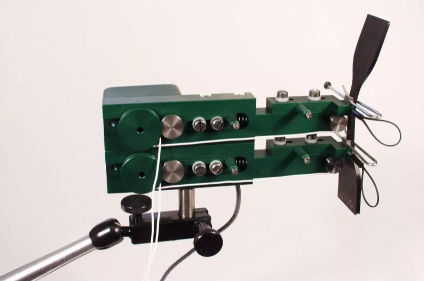

The main body of this unique extensometer remains stationary during testing, held in position by the adjustable magnetic base included. Only the very light, small traveling heads move as the sample elongates during a test. These attach to the sample with small spring clips. Each head pulls a cord out from the extensometer as the head moves. These models use high précision, low friction potentiometers, and, as a resuit, hâve a wide range of factory selectable outputs. The extensometer is driven by an excitation voltage and has output proportional to the input. They can be provided with high level outputs (approximately 2-8 VDC) or ones that mimic strain gaged devices (2-4 mV/V). When set to mimic strain gaged extensometers, the Model 3800 can be used with virtually any signal conditioning electronics designed for strain gaged sensors. The potentiometers employ a hybrid wire wound around conductive plastic, which provides excellent long term stability. The output from the extensometer is readily interfaced with most existing test controllers, and may be directly input to data acquisition Systems and chart recorders. Please let us know at the time of order what type of output and connector you require. Excitation: 5 to 10 VDC recommended, 12 VDC or VAC max. Output: Either 2 to 8 VDC, depending on model (at 10 VDC input) or 2 to 4 mVA/, nominal, selectable at time of order Linearity: <0.15% of full scale measuring range Resolution: 0.18 mm (0.007 inches) for ail measuring ranges Température Range: -40°C to 100°C (-40°F to 210°F) Cable: Intégral, ultra-flexible cable, 2.5 m (8 ft) standard Operating Force: 20 grams typical, each head
