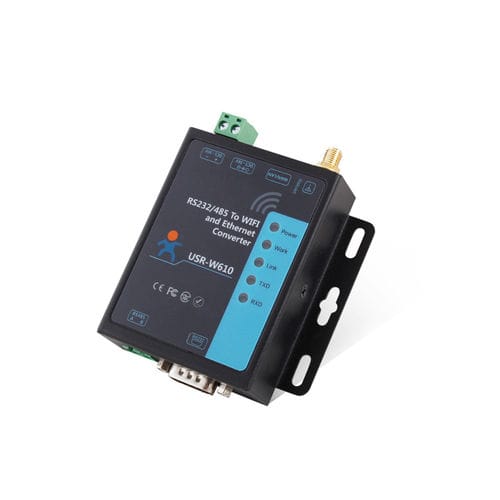

Communications converter USR-W610

RS-232RS-485Modbus RTU

USR-W610 is Serial RS232 or RS485 to WIFI converter, which can realize the bi-directional transparent data transmission between RS232/RS485 and WiFi. It also supports wifi to Ethernet. ● 1-port RS-232 or RS485 to 802.11 b/g/n WLAN serial device server ● Links serial and Ethernet devices to an IEEE 802.11b/g/n network ● Supports TCP server/client, UDP server/client,https client, Virtual COM ● Supports Modbus RTU to Modbus TCP ● Supports multiple networking mode with 1 RJ45 ethernet port Introduction 1-port RS485 to WiFi converters / RS232 to WiFi converters USR-W630 can realize the bi-directional transparent data transmission between RS232/RS485, WiFi and Ethernet. Through simple configuration via Web Server or setup software can assign working details, realize serial data and TCP/IP data package transparent transmission by converter. Features 1.Support WIFI@2.4GHz 802.11b/g/n wireless standards, RS232/RS485to 802.11 a/b/g/n WLAN Serial Device Server 2.Support TCP Server/TCP Client/UDP Server/UDP Client/https Client mode. 3.Support AP, STA, AP+STA. 4.Support RS232 or RS485 serial ports. 5.Support electrostatic protection. 6.Support identity packet function. 7.Support heartbeat packet function. 8.Support Websocket function. 9.Support timeout reset function, timing reset function. 10.Support Web Server, setup software, serial/network AT command to configure module. 11.Support hardware reload. 12.Support usrlink.
