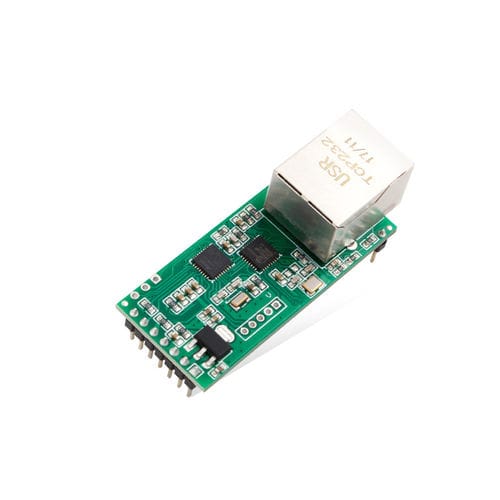

Serial-to-Ethernet converter module USR-TCP232-T2
protocolTTLTTL to Ethernet

serial-to-Ethernet converter module
serial-to-Ethernet converter module
serial-to-Ethernet converter module
serial-to-Ethernet converter module
serial-to-Ethernet converter module
Add to favorites
Compare this product


Characteristics

Type
protocol
Bus
TTL, serial-to-Ethernet, TTL to Ethernet, TTL UART to Ethernet, RS-485, serial, RS232, Ethernet to UART
Applications
for automatic controls, for PLC network
Other characteristics
embedded, fast, bidirectional, high-speed, high-performance

Description

Serial to ethernet converter modules USR-TCP232-T2 can transmit data transparently between TCP/IP and TTL, and it can also be applied in RS232/ RS485 by level shift circuit. ● Based on Cortex-M0 core. ● Pin type. ● Low Power, fast-speed and high-efficiency. ● Supports TCP server/client, UDP server/client ● Web page configuration / DHCP & DNS ● Virtual COM Introduction of Serial to Ethernet Converter Modules USR-TCP232-T2 Serial to Ethernet converter module USR-TCP232-T2 can realize data bidirectional transparent transmission between serial TTL and RJ45 Port. USR-TCP232-T2 is based on Cortex-M0 core. It has characters of low power, fast speed, and high efficiency. Features of Serial to Ethernet Converter Modules USR-TCP232-T2 DHCP &DNS, automatically obtain an IP address and query IP address through serial setting protocol Set parameters through webpage and serial AT command Upgrade firmware via network Auto-MDI/MDIX, RJ45 port with 10/100Mbps Serial port baud rate from 600 bps to 460.8 Kbps, Check bit of None,Odd,Even,Mark and Space Work mode: TCP Server, TCP Client, UDP Client, UDP Server, httpsD Client Support virtual serial port and provide corresponding software USR-VCOM Heartbeat package mechanism to ensure connection is reliable, put an end to dead link User-defined registration package mechanism, check connection status and use as custom packet header Under TCP Server mode, Client number ranges from 1 to 16; default number is 4 The global unique MAC address bought from IEEE, user can define MAC address Restore factory default Across the gateway, switches, routers Can work in LAN, also can work in the Internet (external network)
