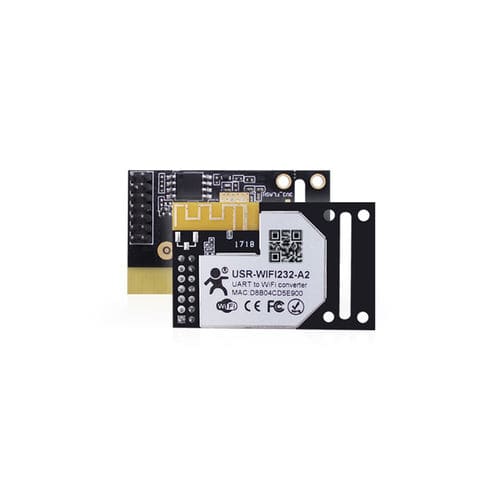

Protocol converter module USR-WIFI232-A2

signalEthernetTTL

USR-WIFI232-A2 are low cost embedded 802.11 b/g/n WiFi modules which can convert UART(3.3V TTL) to WiFi or Ethernet. Embedded 802.11 b/g/n WiFi Modules USR-WIFI232-A2, On-board Antenna, 802.11 b/g/n, convert UART(3.3V TTL) to WiFi or Ethernet. ● Embedded wireless Device Servers ● Supports TCP server/client, UDP server/client, https client, Virtual COM ● Supports Modbus RTU to Modbus TCP ● Supports multiple networking mode with 1 RJ45 ethernet port ● AP/STA/AP+STA ● 32 simultaneous client connections to Soft AP interface Introduction of Embedded WiFi Modules USR-WIFI232-A2 USR-WIFI232-A2 are low cost embedded 802.11 b/g/n WiFi modules which can convert UART(3.3V TTL) to WiFi or Ethernet. Embedded WiFi modules USR-WIFI232-A2 support AP(access point) mode and STA (WiFi client) mode. User can use this embedded module to realize their WiFi application speedy. Features of Cost-effective WiFi Modules USR-WIFI232-A2 Support 802.11b/g/n wireless standard Support TCP/IP/UDP network protocol Support UART/GPIO/Ethernet data interface Support work as STA/AP/AP+STA mode Support router and bridge mode Internal antenna Support transparent transmission mode Provide AT+ instruction set for configuration Provide friendly web configuration page Support heartbeat signal and wifi connection indication Support UART auto-frame function 3.3V power supply Max transmission distance: 200 meters (open horizon)
