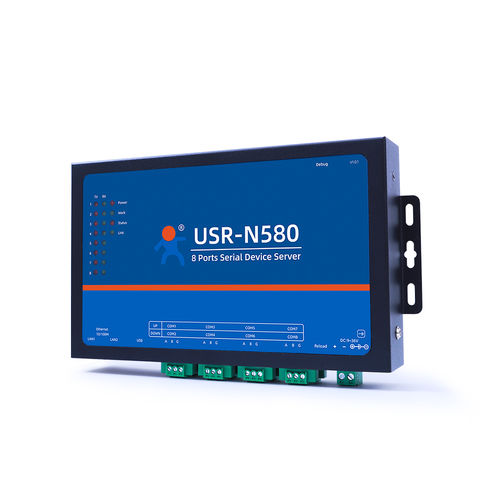

RS-485 to Ethernet converter USR-N580

protocolserialserial-to-Ethernet

8*RS485 Ports Serial Ethernet Converter is designed to realize bidirectional data transparent transmission between the serial port and the Ethernet port. The 8 RS485 ports can work independently and does not affect each other. Each ports can be configured for different baud rates. It supports 600bps~921600bps wide baudrate. ● 8 serial ports support RS485 communication, indicator lights (TX/RX) ● Functions of Modbus gateway, Modbus RTU to Modbus TCP, Modbus polling ● Support TCP Server, TCP Client, UDP Client, UDP Server, HTTPD Client working modes ● Support virtual serial port and provide corresponding software USR-VCOM ● Serial baud rate from 600bps to 921.6K bps; Parity of None, Odd, Even ● Functions of Modbus gateway, Modbus RTU to Modbus TCP, Modbus polling Basic Function Bi-directional data transmission between RS485 port and Ethernet Arm scheme (Cortex-M7 core)to provide a better experience　 Arm Cortex-M7 Scheme,480Mhz CPU, 1M RAM +4M Flash The scheme features short transmission delay, fast data transmission speed, flexible expansion, and stable. (MQTT/SSL/IPV6 and other major protocols will come soon,please enquire directly for more information ). Free Choice of Multiple Working Modes N580 supports TCP Client、TCP Server、UDP Client、UDP Server、Httpd Client (later support MQTT Client) and other modes ; only a simple configuration, you can achieve data pass-through function.
