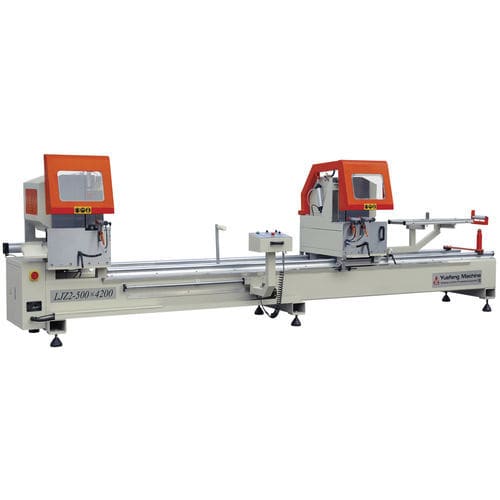

Double-miter saw LJZ2-500×4200(5000)circularfor aluminumwith automatic feeder
Add to favorites
Compare this product
Characteristics
- Technology
- circular
- Treated material
- for aluminum
- Other characteristics
- with automatic feeder, double-miter
- Circular saw blade diameter
500 mm
(20 in)
Description
- Two heads work independently or together.
- Uniform speed feeding and smooth motion due to air-draulic damping cylinder.
- Saw blade feeding system adopts imported linear guide pair, with high accuracy and smooth working.
- Automatic protecting guards result convenience and safety.
Technical Parameter:
Input voltage
380V 50Hz
Input power
4.5Kw
Air pressure
0.5~0.8MPa
Air consumption
200L/min
Spindle speed
3200r/min
Cutting length
360~4200mm(360~5000mm)
Cutting width
10~130mm
Cutting height
10~300mm
Cutting angle
90° 45° 67.5°
Saw feeding speed
0~3m/min
Saw blade standard
φ500×4.4×φ30×Z120
Overall dimension
5500(6300)×1700×1600mm
