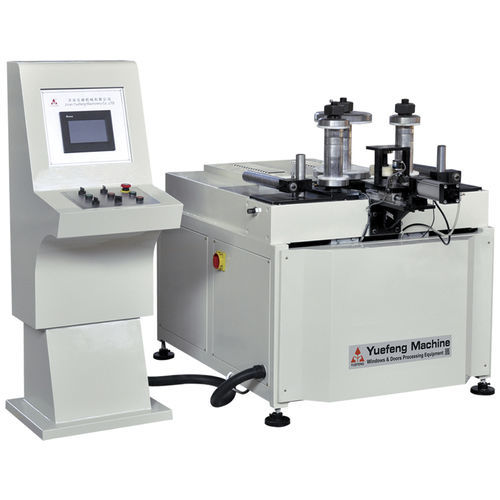

CNC rolling machine LYH-CNC-200

- The machine applies to bending several kinds of metal profiles to appears arc shape, such as iron, copper and aluminium. - Adopts special arc-processing software, can detect the data of rebound, and then eliminate the rebound. - It can make shapes of ellipse, circle and “C”, “U” shapes etc. - Adopts computer control system, the location precision is less than 0.01mm. Technical Parameter: Input voltage 380 50Hz Input power 3.0Kw Air pressure 0.4~0.6MPa Air consumption 120L/min Min. bending radius 230mm Roller diameter 60mm Roller rotation speed 1-8r/min Max. width 200mm Hydraulic pressure 20T（200MPa） Overall dimension 1900×1100×1300mm
