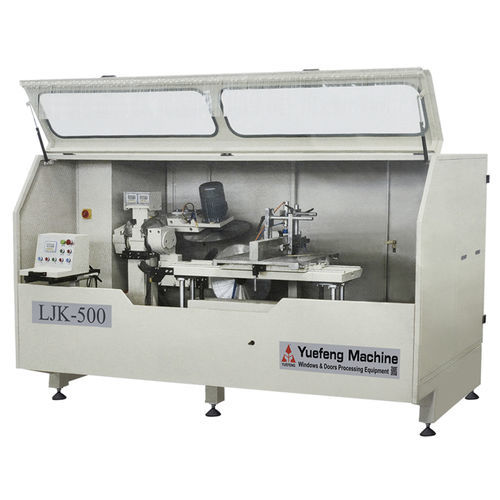

Automatic notching machine LJK-500

- It is apply to cutting the angles on aluminum profiles for curtain wall and skylight roof. - The two saws works together can cutting the special angles. - It adopts magnetic railing ruler, easy to see the cutting angle and work table height. - The two saw blades can be swing on the range +45°/-45°. - The electrical system installs protector and open door breaker to guarantee the safety. Technical Parameter： Input voltage 380V 50Hz Air pressure 0.5~0.8MPa Air consumption 60L/min Motor rotation speed 2800r/min Cutting depth 150mm Milling cutter diameter φ500×4.4×φ30×Z120 Overall dimension 3140×1380×1800mm
