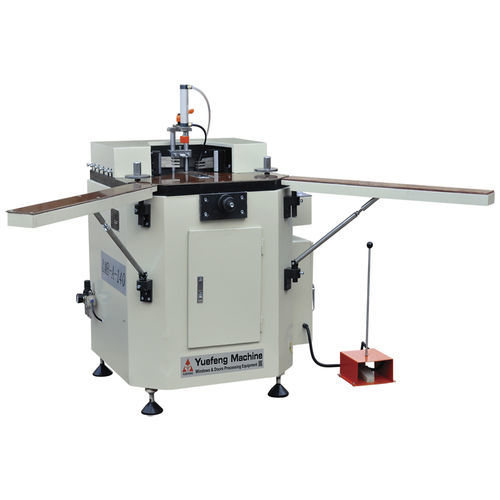

- Used for 90° corner combining.
- Adjustable corner combining tool that achieve multi-position corner combining.
- Inner locator can sit below the worktable, easy operation.
- Hydraulic system supplied large punching and riveting force.
- Left and right punching heads adopt hard synchronous feeding device, thus makes the connection more firmly.
- It has features of easy operation, reliable performance and convenient maintenance.
Technical Parameter:
Input voltage
50Hz
Air pressure
0.4~0.6MPa
Air consumption
0.2L/TIME
Oil capacity
25L
Profile width
≤140mm
Combining cylinder movement
98mm
Locator adjustment range
115mm
Overall dimension
1300×1200×1300mm
