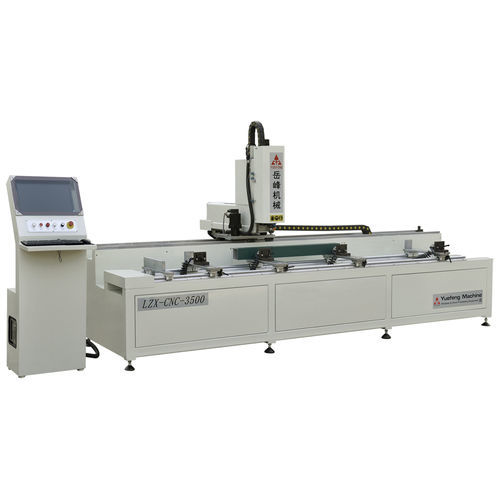

CNC drilling and milling machine LZX-CNC-3500

3-axisfor profiles

- This machine is mainly used for processing all kinds of mounting holes, lock holes, launders and other slots on various profiles. It can work on aluminum alloy, non-ferrous metal, orbit construct and pvc profiles, etc. Once clamping, multiple hole drilling and milling be finished, high efficiency. - Linear guide kinematic pair, ball screw, gear rack and imported servo motor be adopted in this machine, results high stable and accuracy for locating and processing. - The main shaft adopts HSD originally imported from Italy, results stable rotation, small noise and high efficiency. - Order your own mill tools, the mill tools can be selected automatically during working. Technical Parameter： Input voltage 380V 50Hz Input power 8Kw Spindle power 4.5Kw Spindle speed 0~18000r/min X-axes travel 3500mm X-speed 0~60m/min Y-axes travel 400mm Y-speed 0~30m/min Z-axes travel 200mm Z-speed 0~30m/min Process range 3500×400×350mm Overall dimension 4250×1500×1850mm
