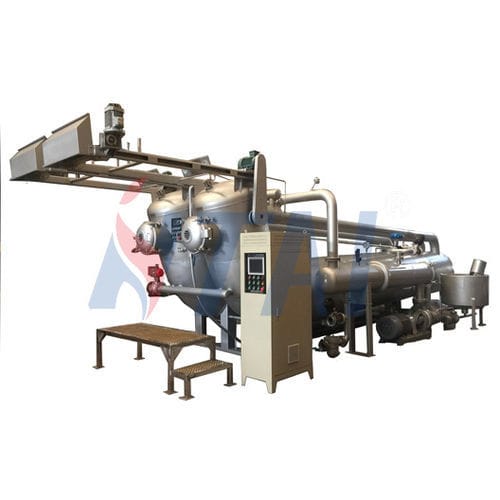

Staple fiber dyeing machine HJ series

This machine uses a new type of nozzle ,Teflon grids and spreading systems, with a maximum capacity of 500kg of cloth and liquor ratio of 1:5.5-1:8.It is the most popular, large and the most environmental-friendly dyeing machine on the market today. 1、Large capacity: each tube can hold about 500kg of blended fabric, and about 450kg of cotton fabric. 2、Low liquor ratio: when the capacity of each tube reaches up to 500kg,the liquor ratio is 1:5.5. 3、Environmental protection: low consumption of water ,energy,discharge and power. 4、Good effect: a high-quality opening system for fabric,which makes fabric flabby and makes the finished product a good effect,with no kind mark. 5、Wide application range: it is suitable for chemical fiber ,pure cotton,micro fibers and blend fabrics of 50g/meter-800g /meter .Besides,it gives good dyeing for fuzz vested of around 800g/meter. The adjustment range of the fabric speed - 0-350m/min ★ Liquor ratio - 1:5.5-1:8 ★ MAX. working pressure - 0.44Mpa ★ MAX. working temperature - 140℃
