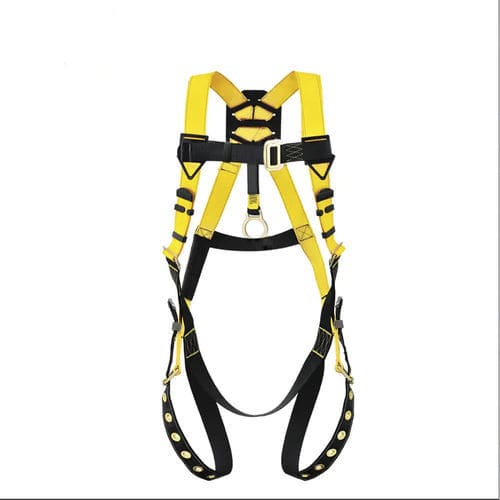

Safety harness JE115021S

dorsal fixation pointfull-bodyD-ring

Adjustable dorsal high strength forged D-ring for fall arrest(CLASS A),rescue and travel restrain with min breaking strength 5000pounds. Finished webbing ends with web holder . Special design & high resistant polyethylene back plate for holding D-ring even after the fall. Adjustable shoulder & thigh &chest strap (5 adjustable points). Each 1 pc plastic triangular ring under the pad on the chest strap plastic for hanging tools and hook. There is grommet on thigh strap with tongue buckle. Include separate extender(JE910016) Capacity of harness:1301bs-3531bs . SYSTEM LIMITATIONS & REQUIREMENTS Capacity: JECH Safety Full Body Harnesses are designed for use by persons with a combined weight (clothing, tools, etc.) of no more than 353lbs. (160 kg) Make sure all of the components in your system are rated to a capacity appropriate to your application. Fall Clearance: If there is a risk of fall or if the only anchorage is below the attachment points on the harness, it is essential to use a lanyard provided with an energy absorber. Before using a shock-absorbing lanyard, check that there is sufficient fall clearance below the user to prevent any collision with the structure or the ground. With a weight of 220 lbs and a fall factor of two (the least favorable case), the fall clearance D is the stopping distance H (2L+5.74 ft) plus an additional distance of 3.28 ft.
