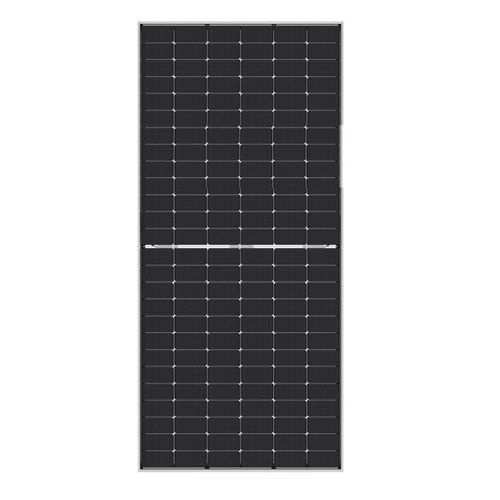

Monocrystalline silicon solar module Tiger Neo 78HC-BDVCEISOTUV
Add to favorites
Compare this product
Characteristics
- Technology
- monocrystalline silicon
- Certifications
- CE, TUV, IEC, ISO
- Other characteristics
- black
- Peak power (Wp)
605 W, 610 W, 615 W, 620 W, 625 W
- Open-circuit voltage
55.2 V, 55.3 V, 55.4 V, 55.6 V, 55.7 V
- Short circuit current
14 A, 14.1 A, 14.2 A, 14.3 A
- Max power voltage
45.4 V, 45.6 V, 45.8 V, 45.9 V, 46.1 V
- Max power current
13.3 A, 13.4 A, 13.5 A, 13.6 A
- Module efficiency
21.64 %, 21.82 %, 22 %, 22.18 %, 22.36 %
- Lenght
2,465 mm
(97 in)- Width
1,134 mm
(45 in)- Height
30 mm
(1 in)- Weight
34.6 kg
(76.28 lb)
Description
IEC61215(2016), IEC61730(2016)
ISO9001:2015: Quality Management System
ISO14001:2015: Environment Management System
ISO45001:2018
Occupational health and safety management systems
SMBB Technology
Better light trapping and current collection to improve module power output and reliability.
PID Resistance
Excellent Anti-PID performance guarantee via optimized mass-production process and materials control.
Hot 2.0 Technology
The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID.
Enhanced Mechanical Load
Certified to withstand: wind load (2400 Pascal) and snow
load (5400 Pascal).
Ultra-high Power Generation/Ultra-high Efficiency
Higher Bifacial Gain
Enhanced Reliability
Lower LID / LETID
High Compatibility
Optimized Temperature Coefficient
Lower Operating Temperature
Optimized Degradation
Outstanding Low Light Performance
Exceptional PID Resistance
12 Year Product Warranty
30 Year Linear Power Warranty
