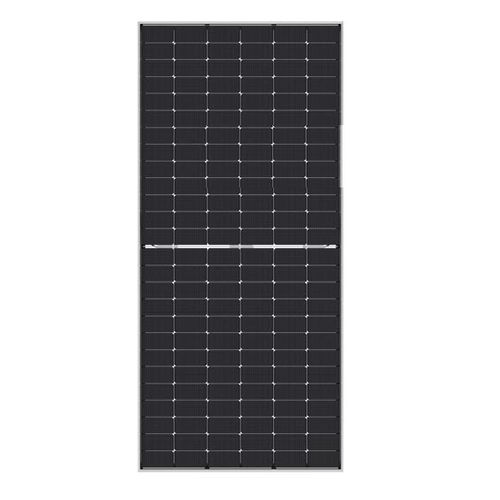

Monocrystalline silicon solar module Tiger Neo 72HC
CEISOTUV

Monocrystalline silicon solar module - Tiger Neo 72HC - Jinko Solar - CE / ISO / TUV

Add to favorites

Compare this product

Characteristics

Technology: monocrystalline silicon
Certifications: CE, TUV, IEC, ISO
Other characteristics: black
Peak power (Wp): 565 W, 570 W, 575 W, 580 W, 585 W
Open-circuit voltage: 50.6 V, 50.7 V, 50.9 V, 51 V, 51.2 V
Short circuit current: 14.2 A, 14.3 A, 14.4 A, 14.5 A, 14.6 A
Max power voltage: 41.9 V, 42.1 V, 42.2 V, 42.4 V, 42.5 V
Max power current: 13.5 A, 13.6 A, 13.7 A, 13.8 A
Module efficiency: 21.87 %, 22.07 %, 22.26 %, 22.45 %, 22.65 %
Lenght: 2,278 mm
(90 in)
Width: 1,134 mm
(45 in)
Height: 35 mm
(1 in)
Weight: 28 kg
(61.73 lb)

Description

Positive power tolerance of 0~+3% IEC61215(2016), IEC61730(2016) ISO9001:2015: Quality Management System ISO14001:2015: Environment Management System ISO45001:2018 Occupational health and safety management systems SMBB Technology Better light trapping and current collection to improve module power output and reliability. PID Resistance Excellent Anti-PID performance guarantee via optimized mass-production process and materials control. Durability Against Extreme Environmental Conditions High salt mist and ammonia resistance. Hot 2.0 Technology The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID. Enhanced Mechanical Load Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal). Ultra-high Power Generation/Ultra-high Efficiency Higher Bifacial Gain Enhanced Reliability Lower LID / LETID High Compatibility Optimized Temperature Coefficient Lower Operating Temperature Optimized Degradation Outstanding Low Light Performance Exceptional PID Resistance
