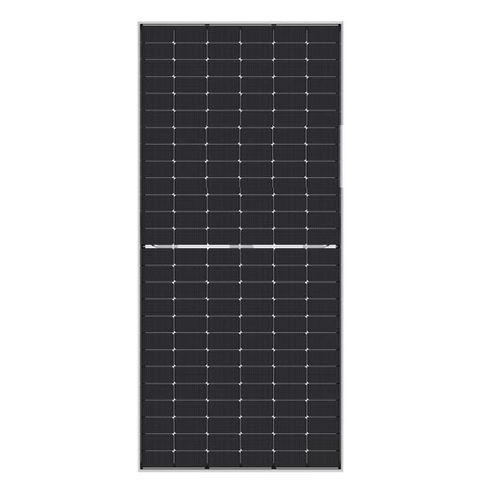

Monocrystalline silicon solar module Tiger Neo 72HC-BDV
CEISOTUV

Monocrystalline silicon solar module - Tiger Neo 72HC-BDV - Jinko Solar - CE / ISO / TUV

Add to favorites

Compare this product

Characteristics

Technology: monocrystalline silicon
Certifications: CE, IEC, TUV, ISO
Other characteristics: black
Peak power (Wp): 560 W, 565 W, 570 W, 575 W, 580 W
Open-circuit voltage: 48.7 V, 50.7 V, 50.9 V, 51.1 V, 51.3 V
Short circuit current: 14.1 A, 14.2 A, 14.3 A, 14.4 A
Max power voltage: 42 V, 42.1 V, 42.3 V, 42.4 V, 42.6 V
Max power current: 13.4 A, 13.5 A, 13.6 A
Module efficiency: 21.68 %, 21.87 %, 22.07 %, 22.26 %, 22.45 %
Lenght: 2,278 mm
(90 in)
Width: 1,134 mm
(45 in)
Height: 30 mm
(1 in)
Weight: 32 kg
(70.55 lb)

Description

Ultra-high Power Generation/Ultra-high Efficiency Higher Bifacial Gain Enhanced Reliability Lower LID / LETID High Compatibility Optimized Temperature Coefficient Lower Operating Temperature Optimized Degradation Outstanding Low Light Performance Exceptional PID Resistance SMBB Technology Better light trapping and current collection to improve module power output and reliability. PID Resistance Excellent Anti-PID performance guarantee via optimized mass-production process and materials control. Higher Power Output Module power increases 5-25% generally, bringing significantly lower LCOE and higher IRR. Hot 2.0 Technology The N-type module with Hot 2.0 technology has better reliability and lower LID/LETID. Enhanced Mechanical Load Certified to withstand: wind load (2400 Pascal) and snow load (5400 Pascal).
